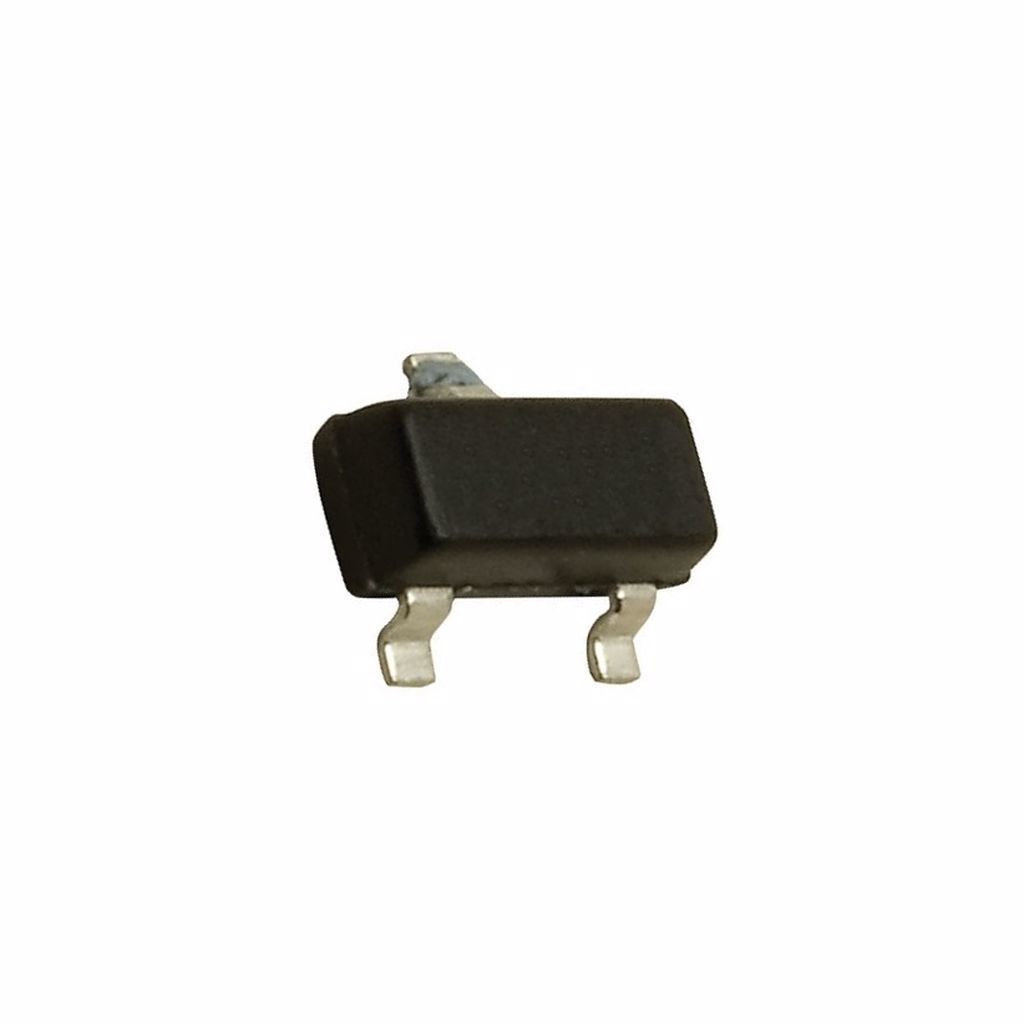

2SA1162-Y

Type Designator: 2SA1162-Y

SMD Transistor Code: SY

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.15 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Collector-Emitter Voltage |Vce|: 50 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.15 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 80 MHz

Collector Capacitance (Cc): 7 pF

Forward Current Transfer Ratio (hFE), MIN: 70

Noise Figure, dB: -
