2SA1259

Type Designator: 2SA1259

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 30 W

Maximum Collector-Base Voltage |Vcb|: 70 V

Maximum Collector-Emitter Voltage |Vce|: 60 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 5 A

Max. Operating Junction Temperature (Tj): 125 °C

Transition Frequency (ft): 200 MHz

Forward Current Transfer Ratio (hFE), MIN: 6000

Noise Figure, dB: -

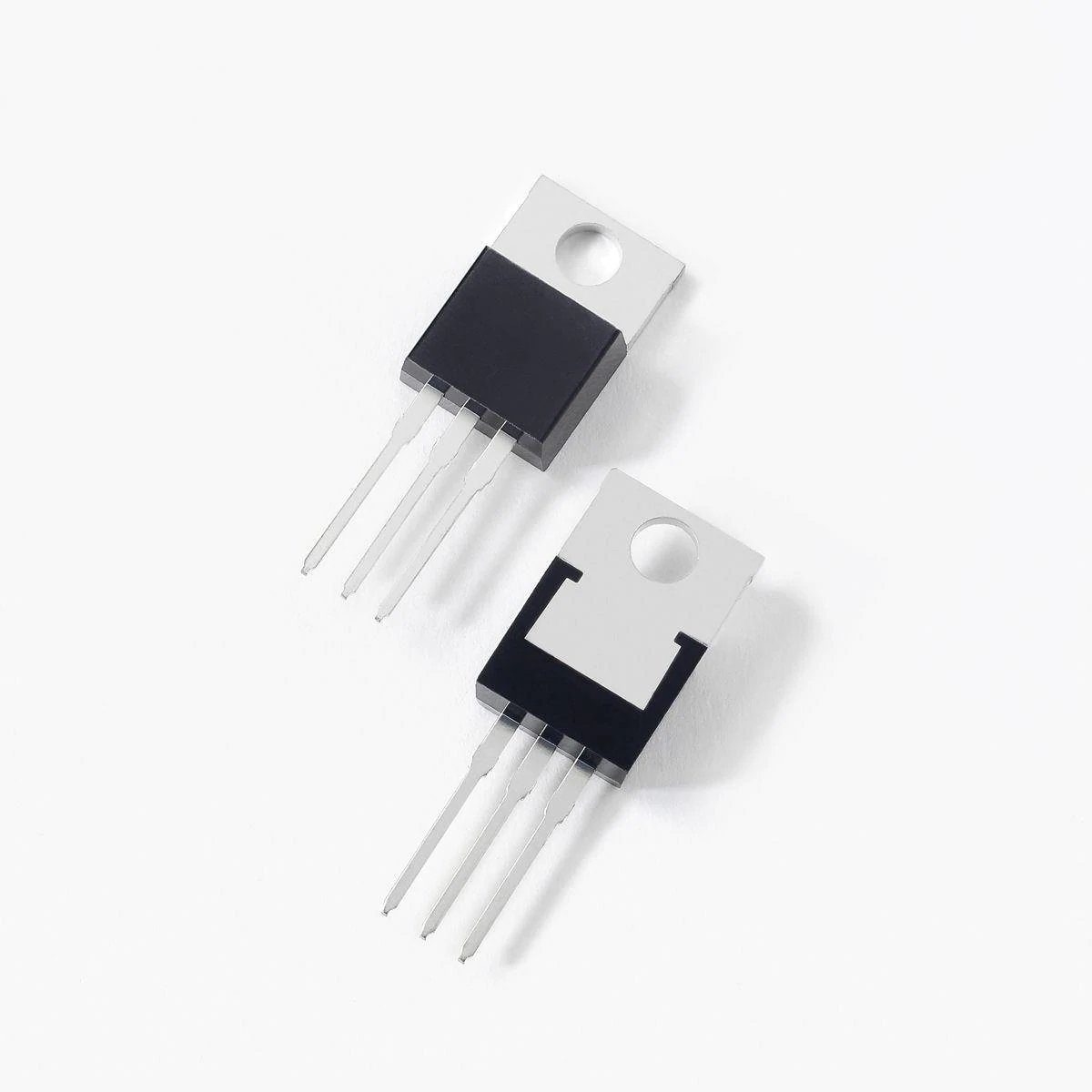

Package: TO220
