2SA1270

Type Designator: 2SA1270

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.5 W

Maximum Collector-Base Voltage |Vcb|: 35 V

Maximum Collector Current |Ic max|: 0.5 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 200 MHz

Collector Capacitance (Cc): 12 pF

Forward Current Transfer Ratio (hFE), MIN: 120

Noise Figure, dB: -

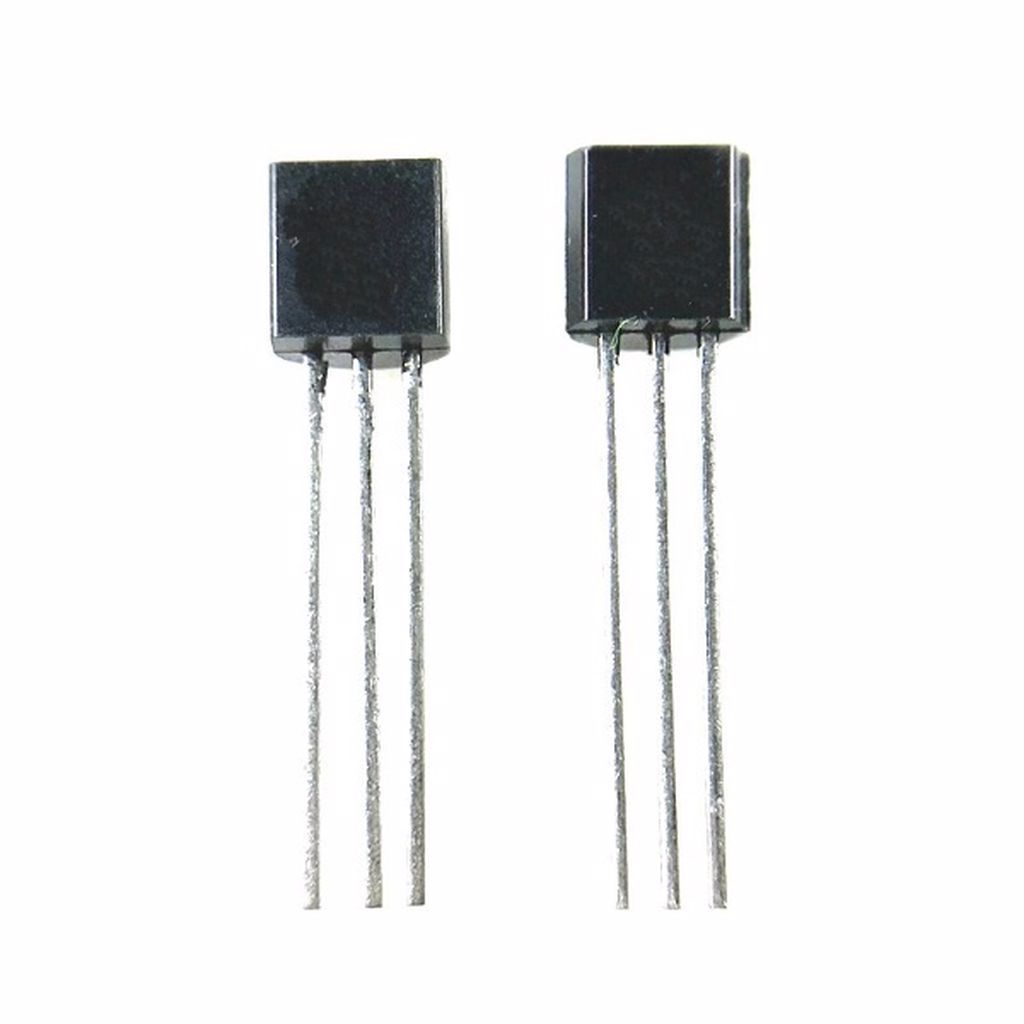

Package: TO92
