2SA1295

Type Designator: 2SA1295

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 200 W

Maximum Collector-Base Voltage |Vcb|: 230 V

Maximum Collector-Emitter Voltage |Vce|: 230 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 17 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 35 MHz

Collector Capacitance (Cc): 500 pF

Forward Current Transfer Ratio (hFE), MIN: 50

Noise Figure, dB: -

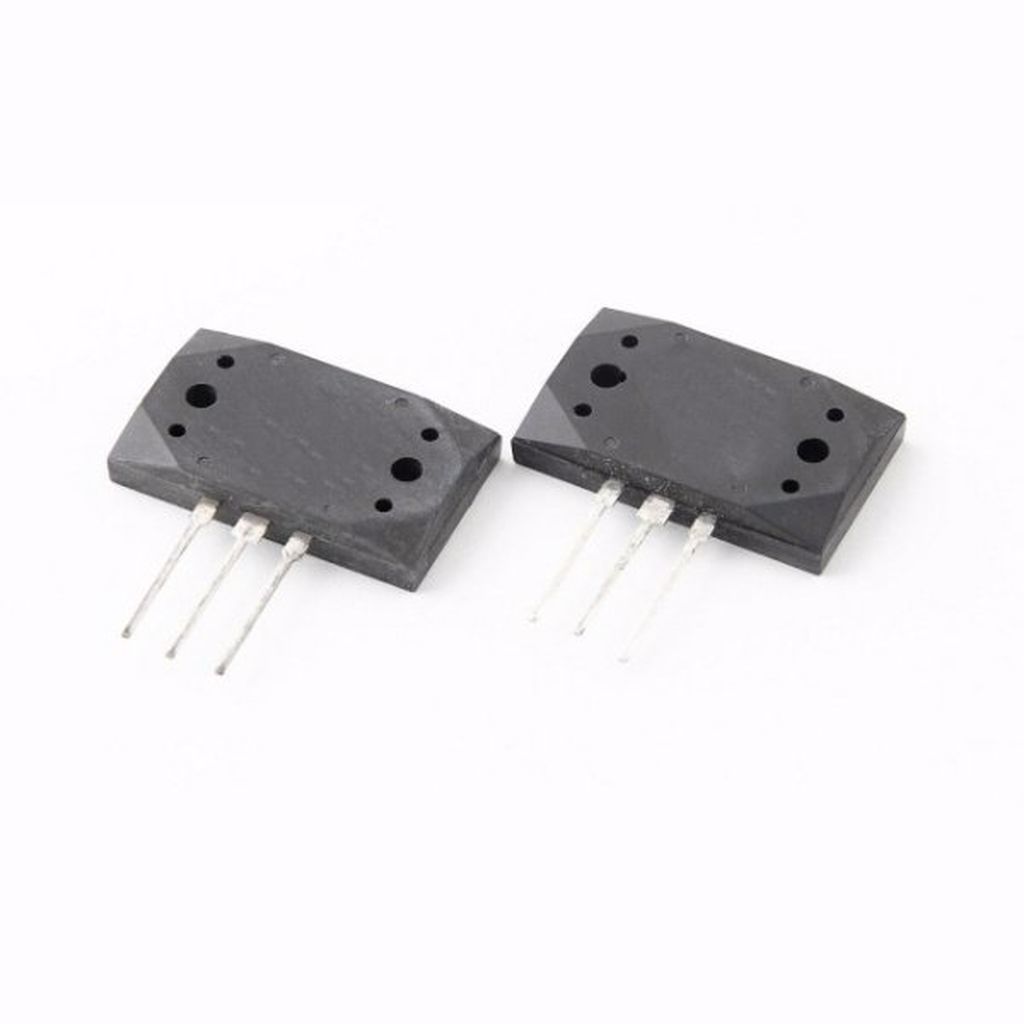

Package: MT200
