2SA1296

Type Designator: 2SA1296

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.75 W

Maximum Collector-Base Voltage |Vcb|: 20 V

Maximum Collector-Emitter Voltage |Vce|: 20 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 2 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 120 MHz

Collector Capacitance (Cc): 120 pF

Forward Current Transfer Ratio (hFE), MIN: 120

Noise Figure, dB: -

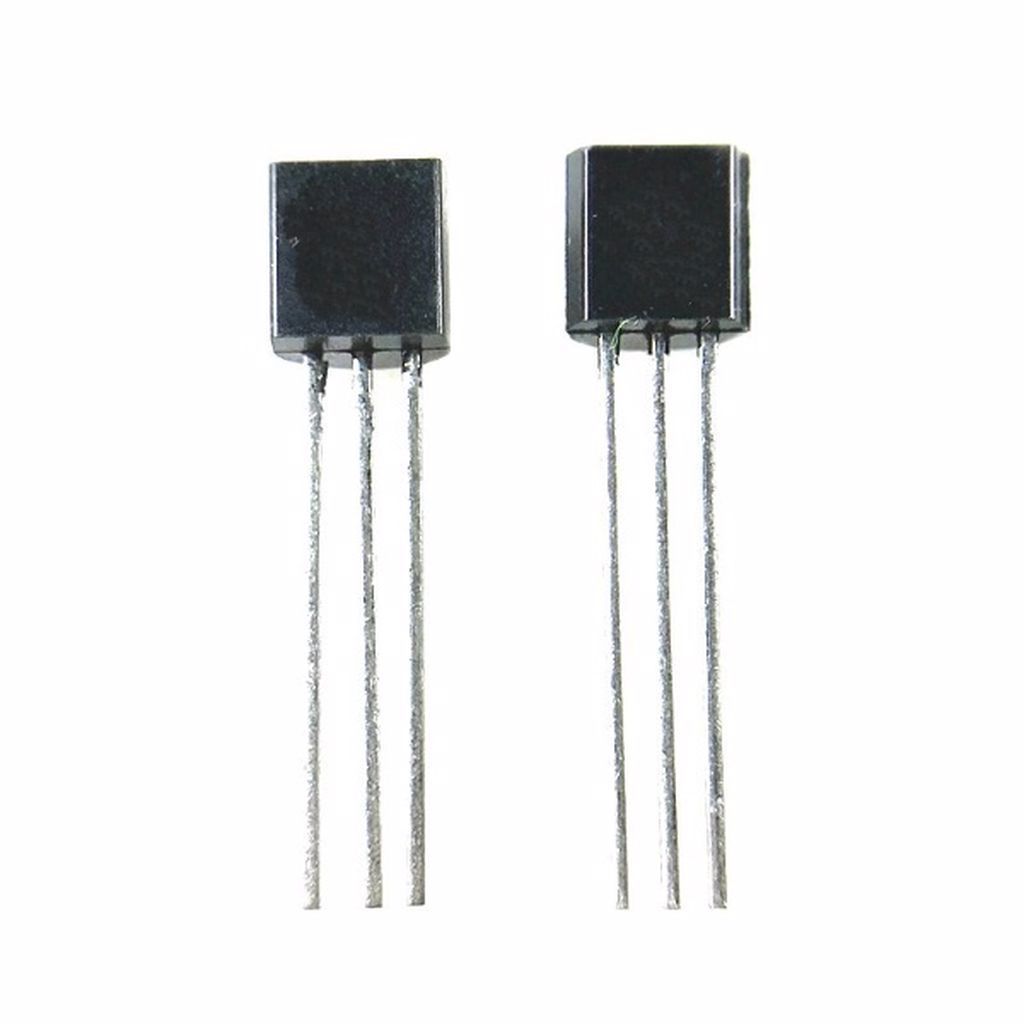

Package: TO92
