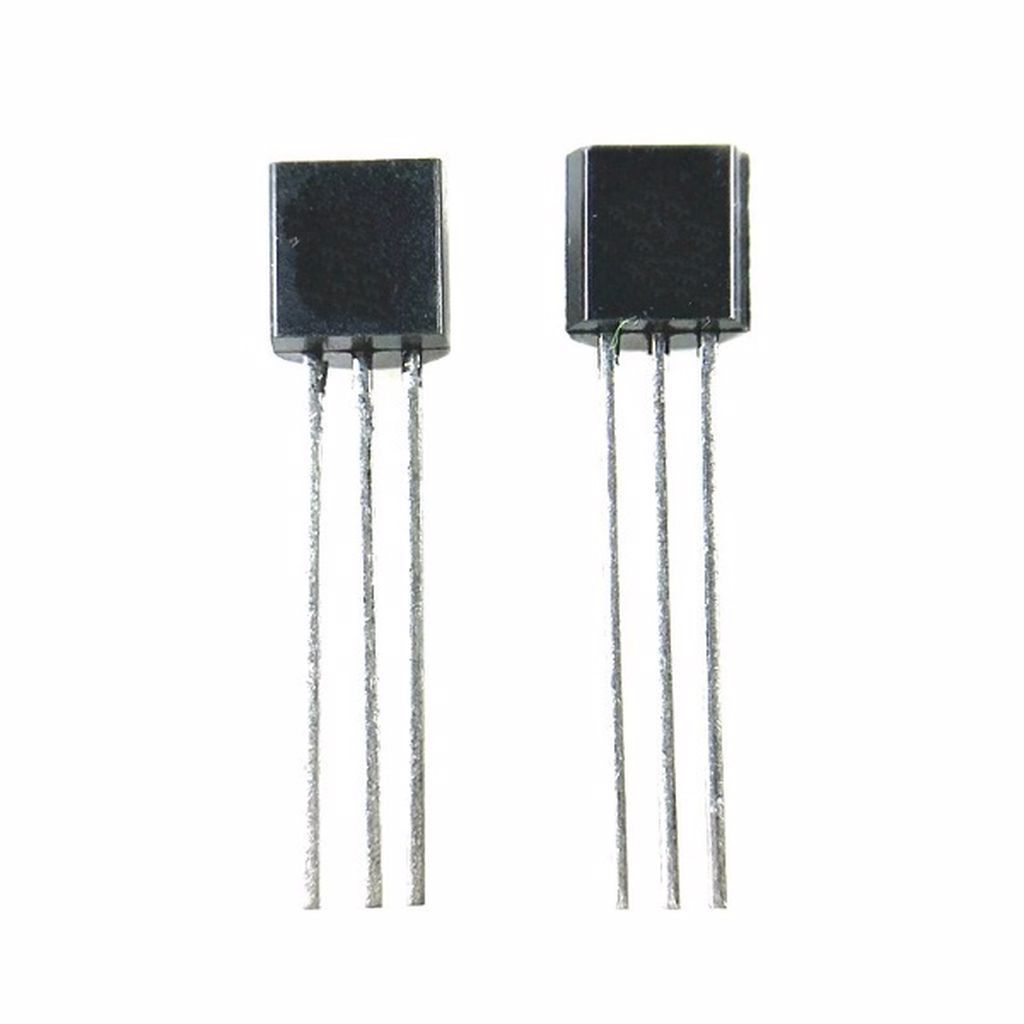

2SA1319 TO-92 0.7A 180V 0.7W PNP TRANSISTOR
6,19 TL
2SA1319
Type Designator: 2SA1319
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.7 W
Maximum Collector-Base Voltage |Vcb|: 180 V
Maximum Collector-Emitter Voltage |Vce|: 180 V
Maximum Collector Current |Ic max|: 0.7 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 120 MHz
Collector Capacitance (Cc): 5 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Noise Figure, dB: -
