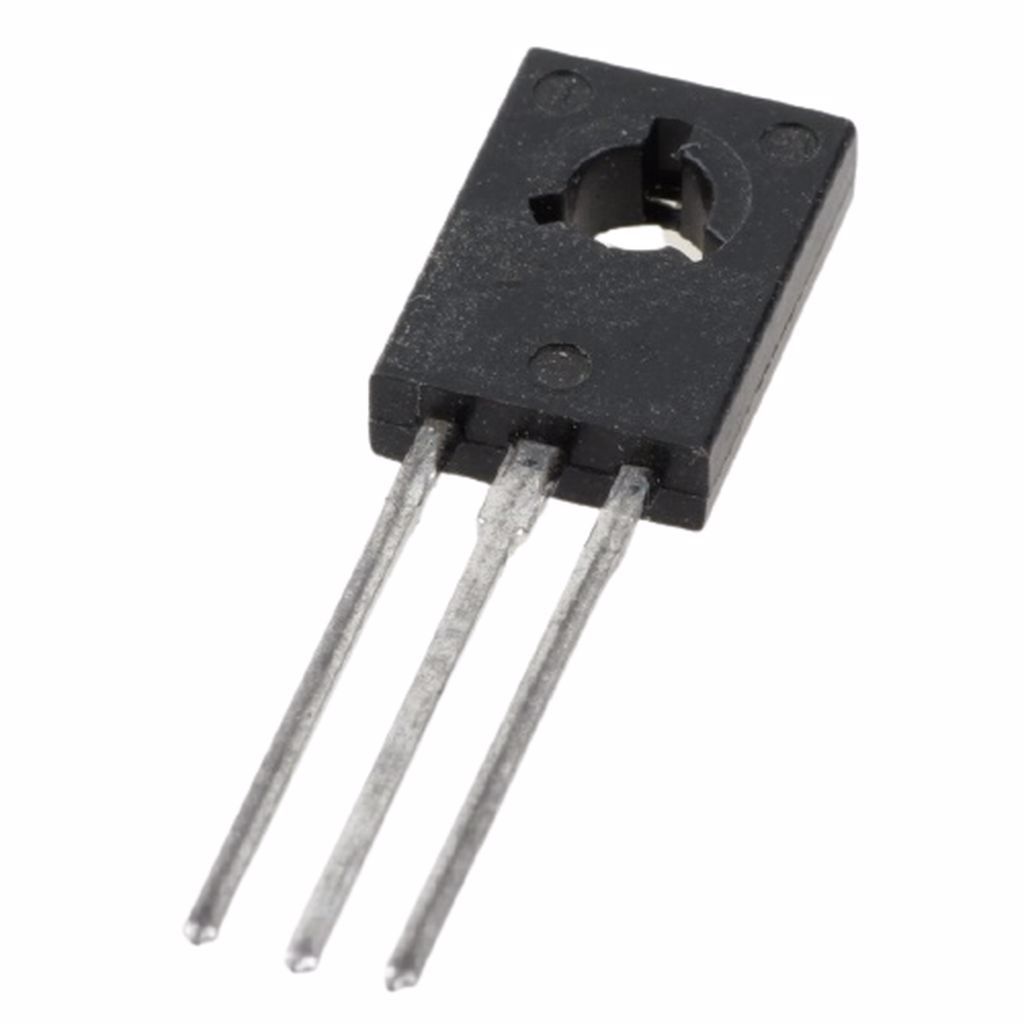

2SA1357-Y TO-126 5A 35V 10W PNP TRANSISTOR
25,75 TL
2SA1357
Type Designator: 2SA1357
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 10 W
Maximum Collector-Base Voltage |Vcb|: 35 V
Maximum Collector-Emitter Voltage |Vce|: 20 V
Maximum Emitter-Base Voltage |Veb|: 8 V
Maximum Collector Current |Ic max|: 5 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 170 MHz
Collector Capacitance (Cc): 62 pF
Forward Current Transfer Ratio (hFE), MIN: 70
Noise Figure, dB: -
