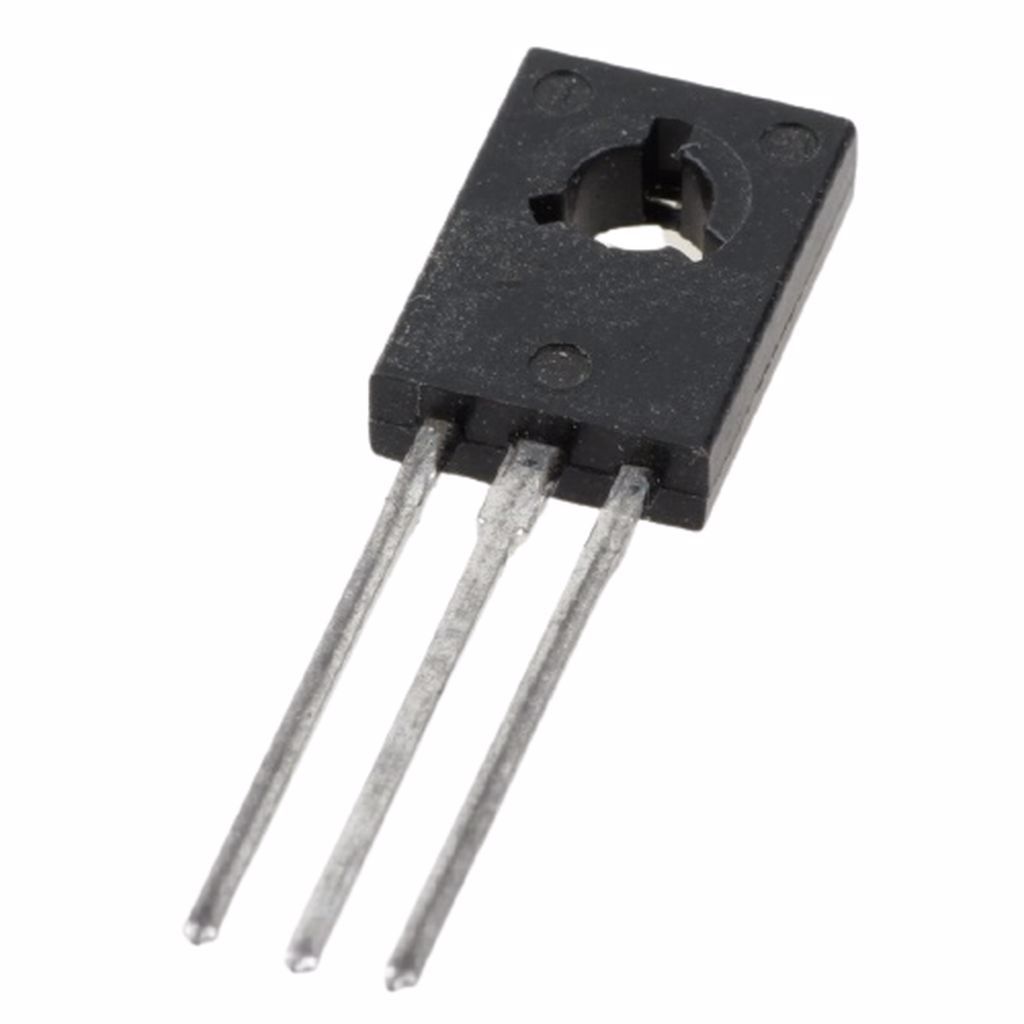

2SA1360

Type Designator: 2SA1360

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 5 W

Maximum Collector-Base Voltage |Vcb|: 150 V

Maximum Collector-Emitter Voltage |Vce|: 150 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.05 A

Max. Operating Junction Temperature (Tj): 135 °C

Transition Frequency (ft): 200 MHz

Collector Capacitance (Cc): 2.5 pF

Forward Current Transfer Ratio (hFE), MIN: 70

Noise Figure, dB: -
