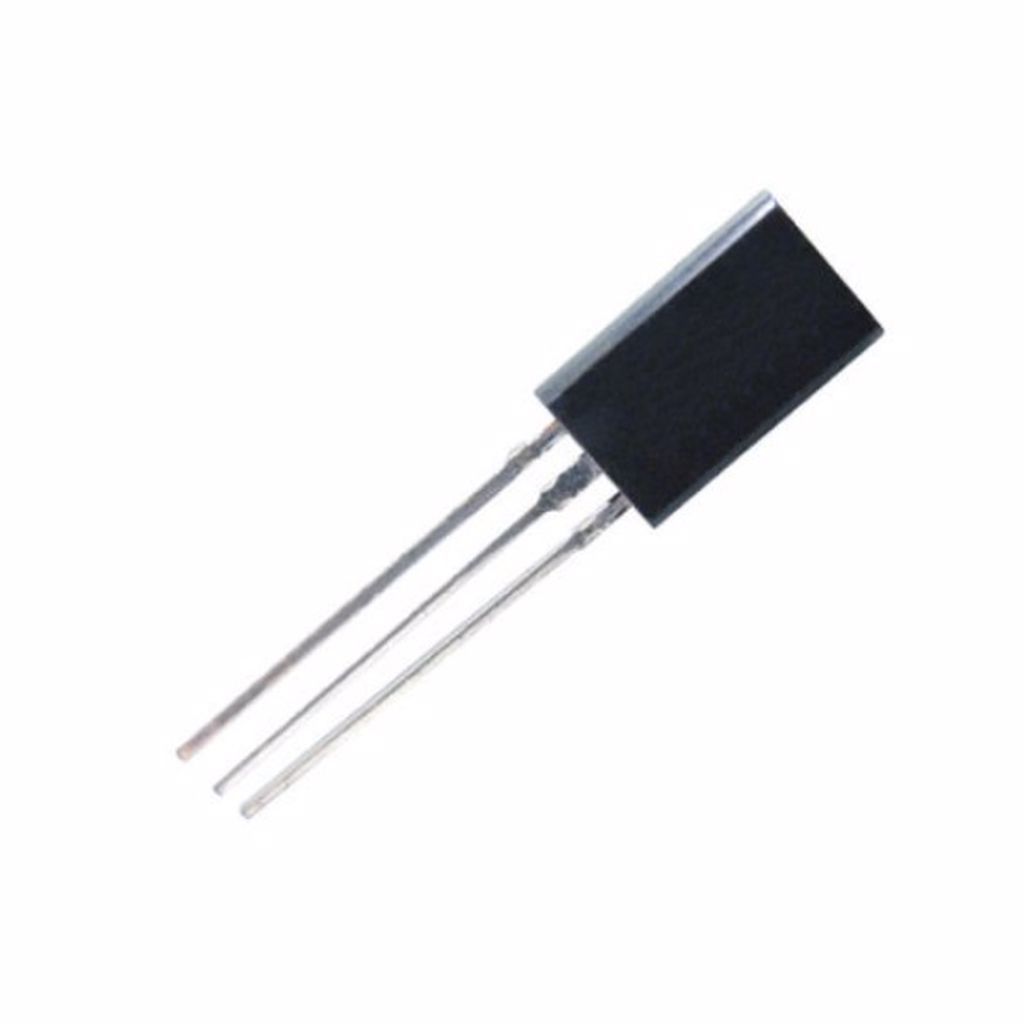

2SA1370-E TO-92L 0.1A 200V 1W PNP TRANSISTOR
14,10 TL
2SA1370
Type Designator: 2SA1370
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 1 W
Maximum Collector-Base Voltage |Vcb|: 200 V
Maximum Collector-Emitter Voltage |Vce|: 200 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 150 MHz
Forward Current Transfer Ratio (hFE), MIN: 40
Package: TO92
