2SA1371

Type Designator: 2SA1371

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 1 W

Maximum Collector-Base Voltage |Vcb|: 300 V

Maximum Collector-Emitter Voltage |Vce|: 300 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 125 °C

Transition Frequency (ft): 150 MHz

Forward Current Transfer Ratio (hFE), MIN: 40

Noise Figure, dB: -

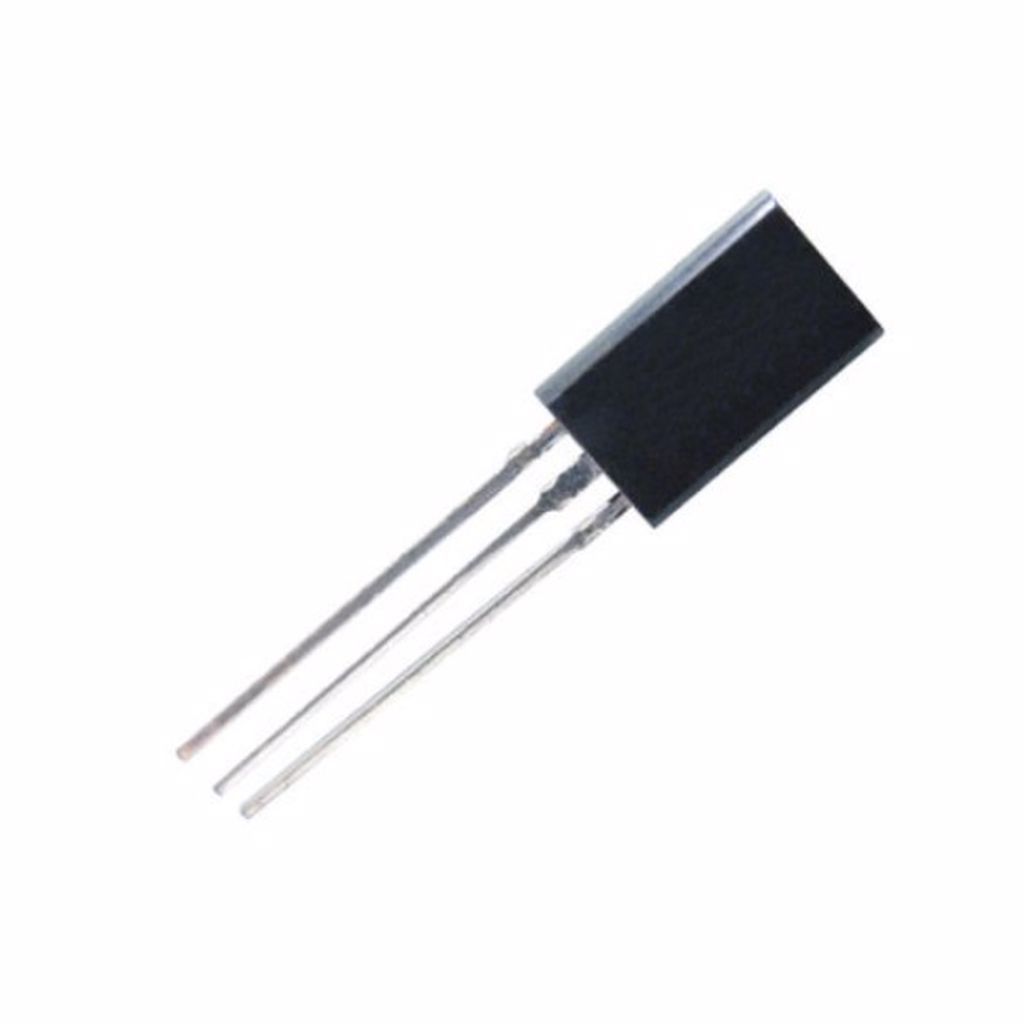

Package: TO92
