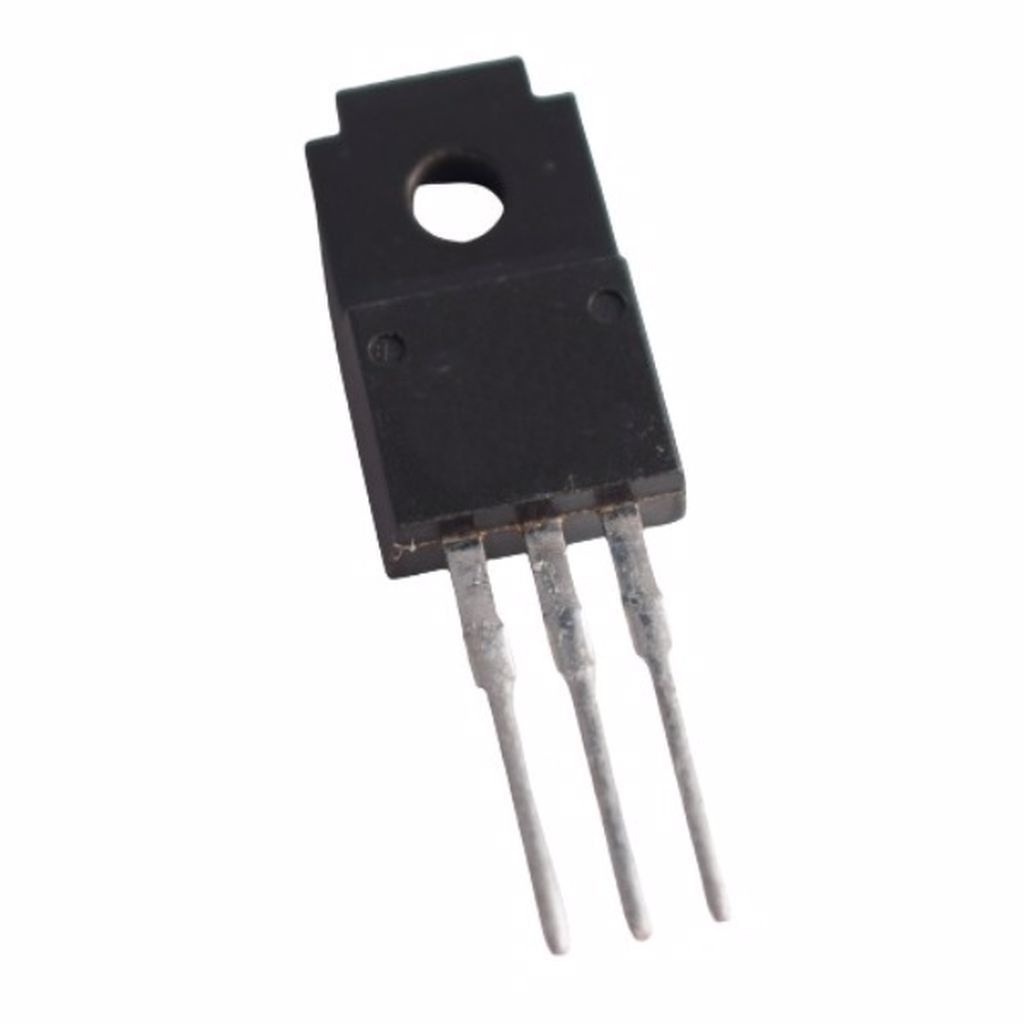

2SA1387 TO-220FA 5A 60V 25W PNP TRANSISTOR
27,23 TL
2SA1387
Type Designator: 2SA1387
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 25 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 7 V
Maximum Collector Current |Ic max|: 5 A
Max. Operating Junction Temperature (Tj): 135 °C
Forward Current Transfer Ratio (hFE), MIN: 60
Noise Figure, dB: -
