2SA1413

Type Designator: 2SA1413

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 10 W

Maximum Collector-Base Voltage |Vcb|: 600 V

Maximum Collector Current |Ic max|: 1 A

Max. Operating Junction Temperature (Tj): 135 °C

Transition Frequency (ft): 28 MHz

Collector Capacitance (Cc): 220 pF

Forward Current Transfer Ratio (hFE), MIN: 180

Noise Figure, dB: -

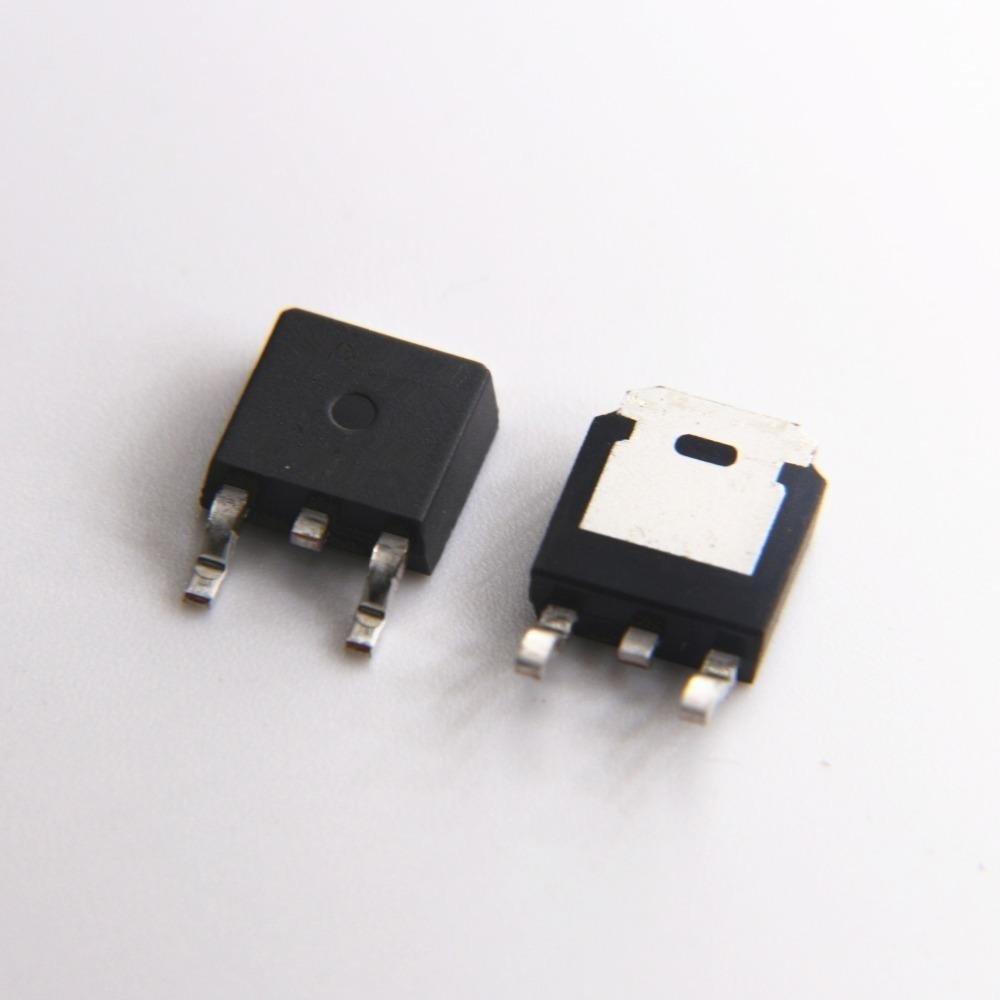

Package: TO252
