2SA1658

Type Designator: 2SA1658

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 15 W

Maximum Collector-Base Voltage |Vcb|: 30 V

Maximum Collector-Emitter Voltage |Vce|: 30 V

Maximum Emitter-Base Voltage |Veb|: 3 V

Maximum Collector Current |Ic max|: 3 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 100 MHz

Forward Current Transfer Ratio (hFE), MIN: 180

Noise Figure, dB: -

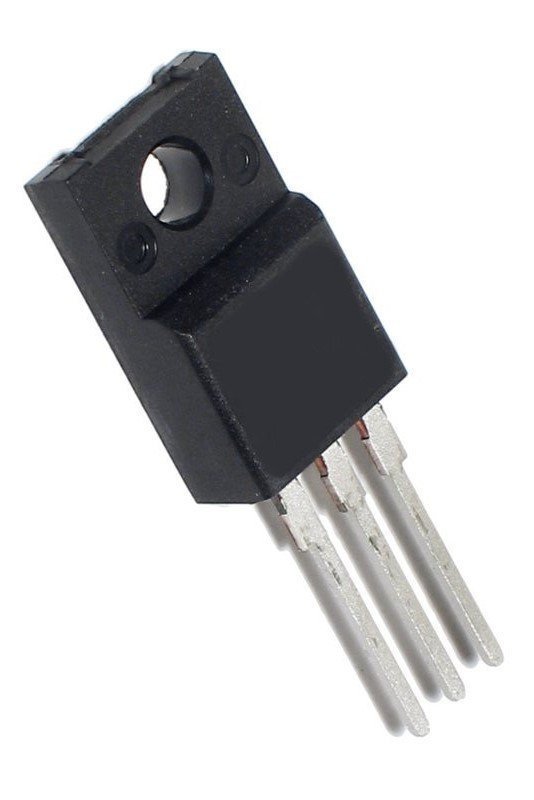

Package: TO220
