2SA1659

Type Designator: 2SA1659

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 20 W

Maximum Collector-Base Voltage |Vcb|: 160 V

Maximum Collector-Emitter Voltage |Vce|: 145 V

Maximum Emitter-Base Voltage |Veb|: 7 V

Maximum Collector Current |Ic max|: 1.5 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 100 MHz

Forward Current Transfer Ratio (hFE), MIN: 60

Noise Figure, dB: -

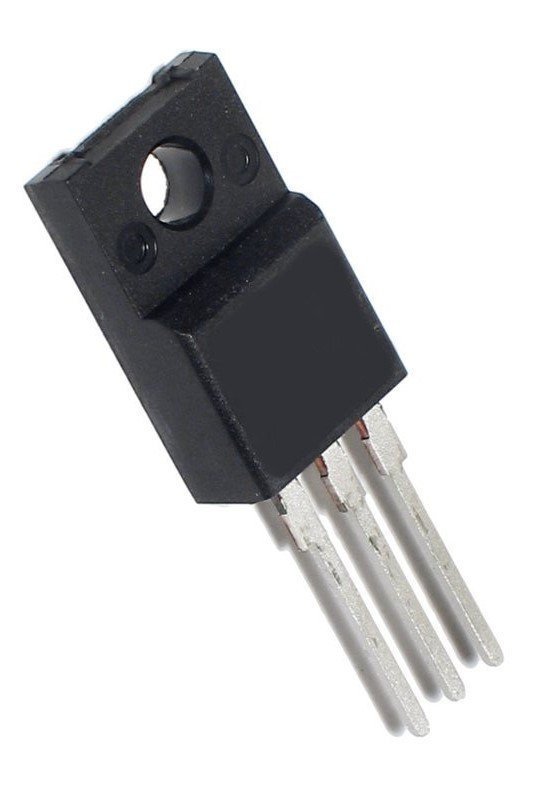

Package: TO220
