2SA1672

Type Designator: 2SA1672

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 80 W

Maximum Collector-Base Voltage |Vcb|: 140 V

Maximum Collector-Emitter Voltage |Vce|: 140 V

Maximum Emitter-Base Voltage |Veb|: 8 V

Maximum Collector Current |Ic max|: 10 A

Max. Operating Junction Temperature (Tj): 135 °C

Transition Frequency (ft): 20 MHz

Forward Current Transfer Ratio (hFE), MIN: 40

Noise Figure, dB: -

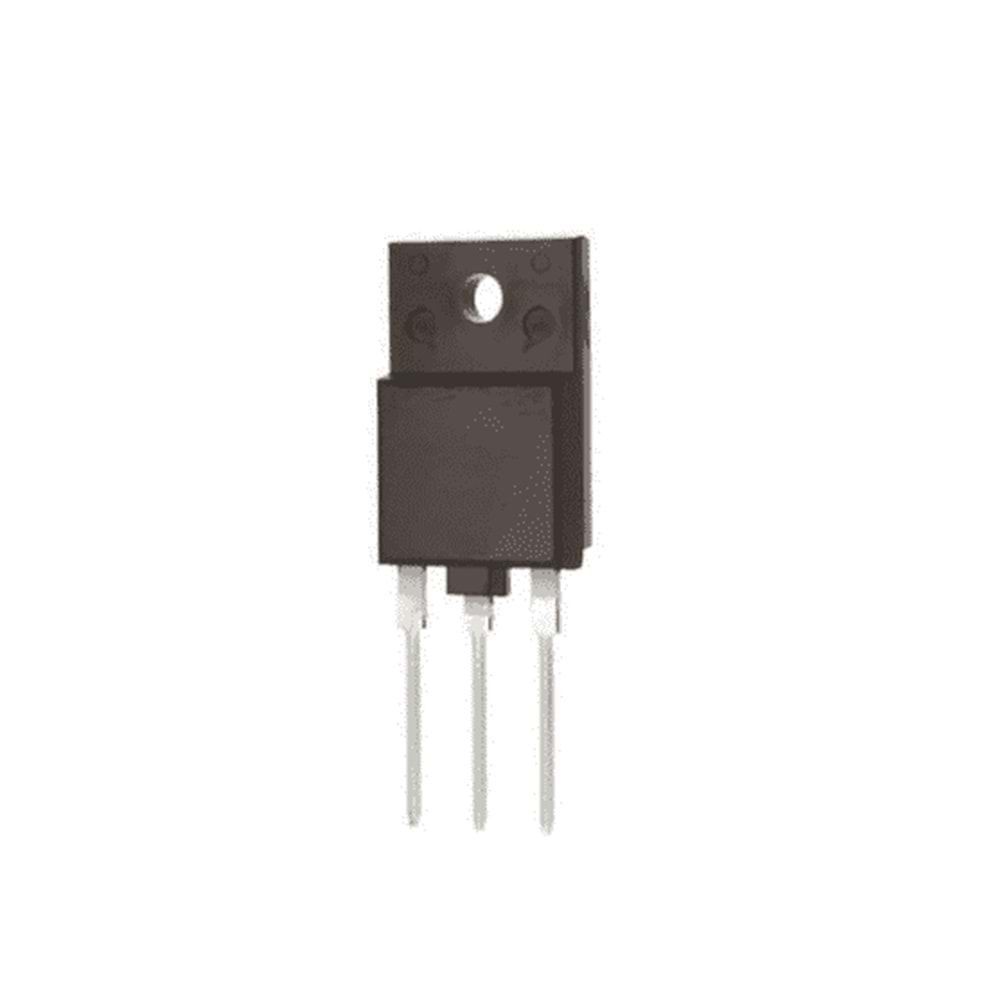

Package: TO220
