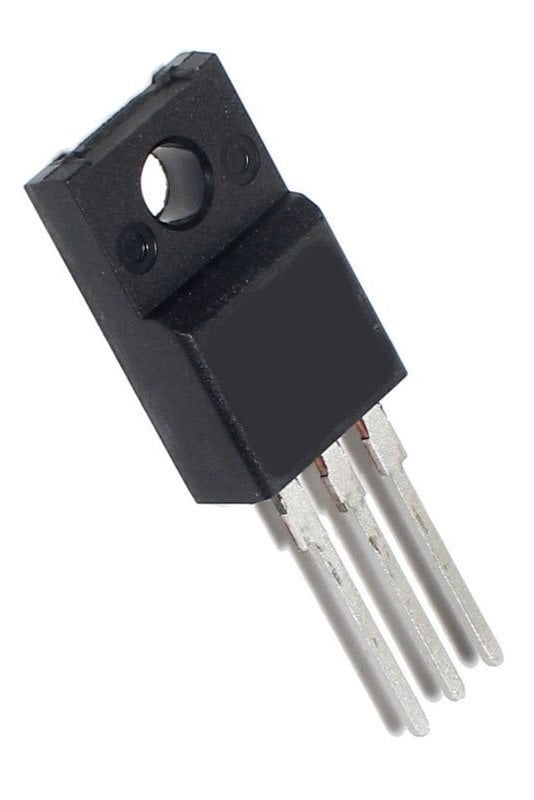

2SA1742 TO-220F 7A 60V 30W PNP TRANSISTOR
59,24 TL
2SA1742
Type Designator: 2SA1742
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 30 W
Maximum Collector-Base Voltage |Vcb|: 100 V
Maximum Collector-Emitter Voltage |Vce|: 80 V
Maximum Emitter-Base Voltage |Veb|: 3 V
Maximum Collector Current |Ic max|: 7 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 80 MHz
Forward Current Transfer Ratio (hFE), MIN: 65
Noise Figure, dB: -
