2SA1745

Type Designator: 2SA1745

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.9 W

Maximum Collector-Base Voltage |Vcb|: 20 V

Maximum Collector-Emitter Voltage |Vce|: 12 V

Maximum Collector Current |Ic max|: 0.5 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 400 MHz

Forward Current Transfer Ratio (hFE), MIN: 180

Noise Figure, dB: -

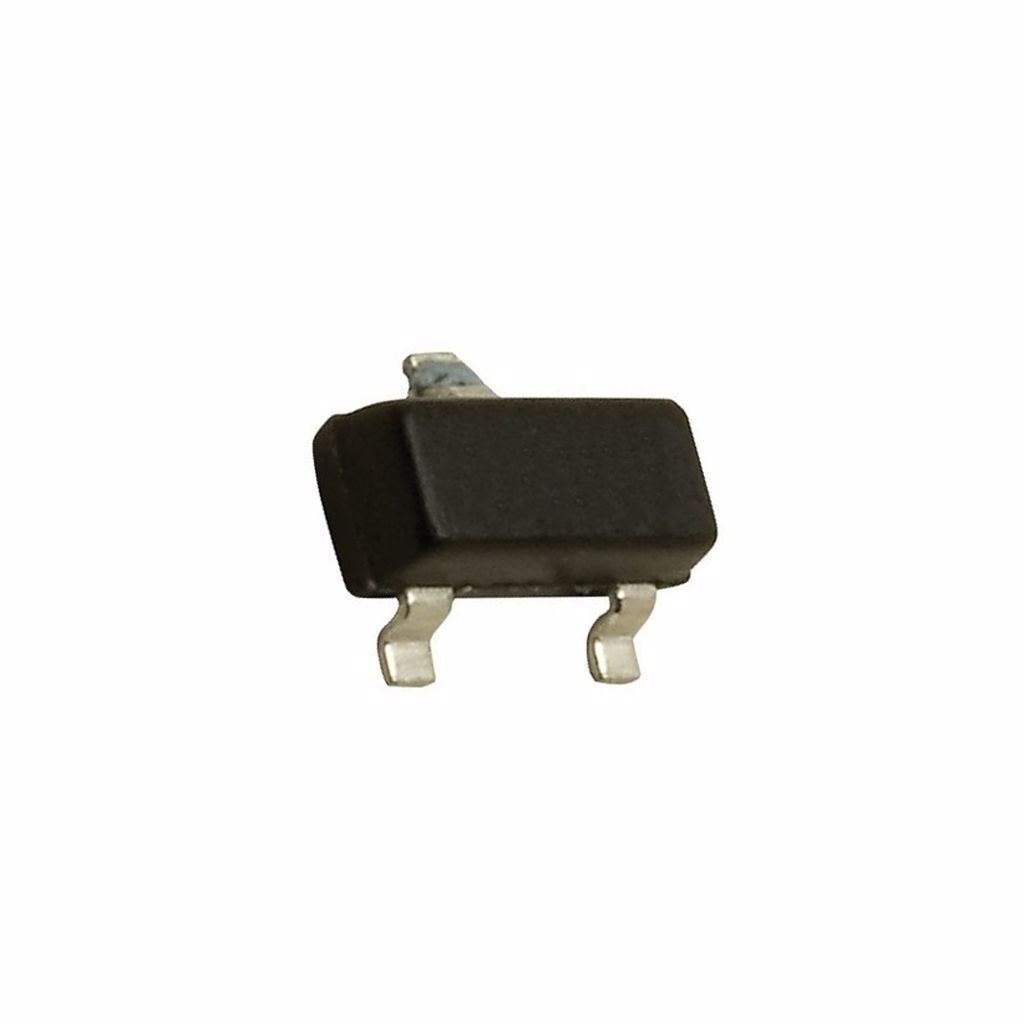

Package: TO236
