2SA1931

Type Designator: 2SA1931

SMD Transistor Code: A1931

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 20 W

Maximum Collector-Base Voltage |Vcb|: 60 V

Maximum Collector-Emitter Voltage |Vce|: 50 V

Maximum Emitter-Base Voltage |Veb|: 7 V

Maximum Collector Current |Ic max|: 5 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 60 MHz

Collector Capacitance (Cc): 100 pF

Forward Current Transfer Ratio (hFE), MIN: 101

Noise Figure, dB: -

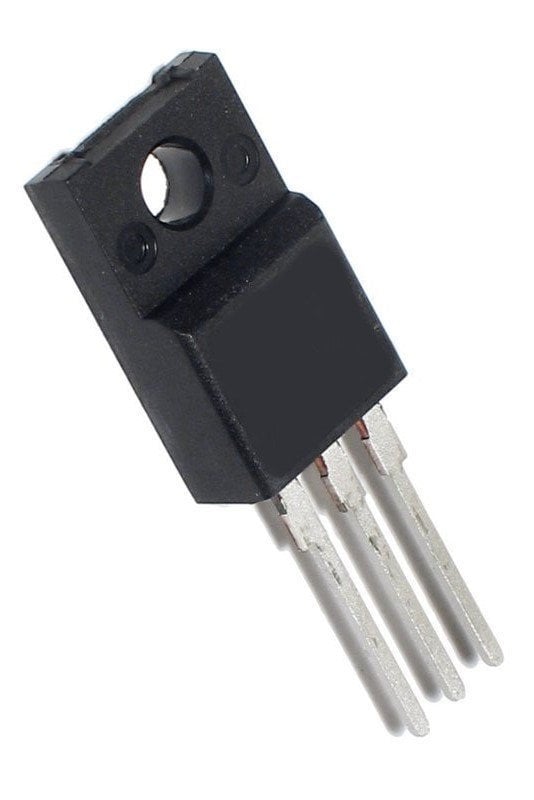

Package: TO220NIS
