2SA2121

Type Designator: 2SA2121

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 220 W

Maximum Collector-Base Voltage |Vcb|: 200 V

Maximum Collector-Emitter Voltage |Vce|: 200 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 15 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 25 MHz

Collector Capacitance (Cc): 470 pF

Forward Current Transfer Ratio (hFE), MIN: 55

Noise Figure, dB: -

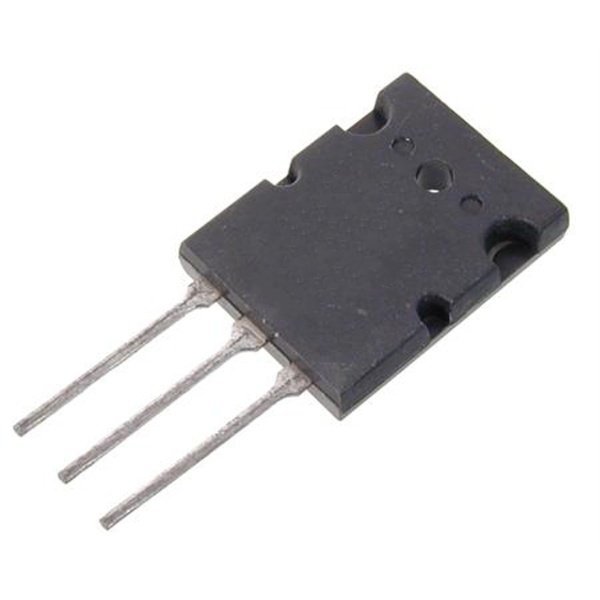

Package: TO3PL
