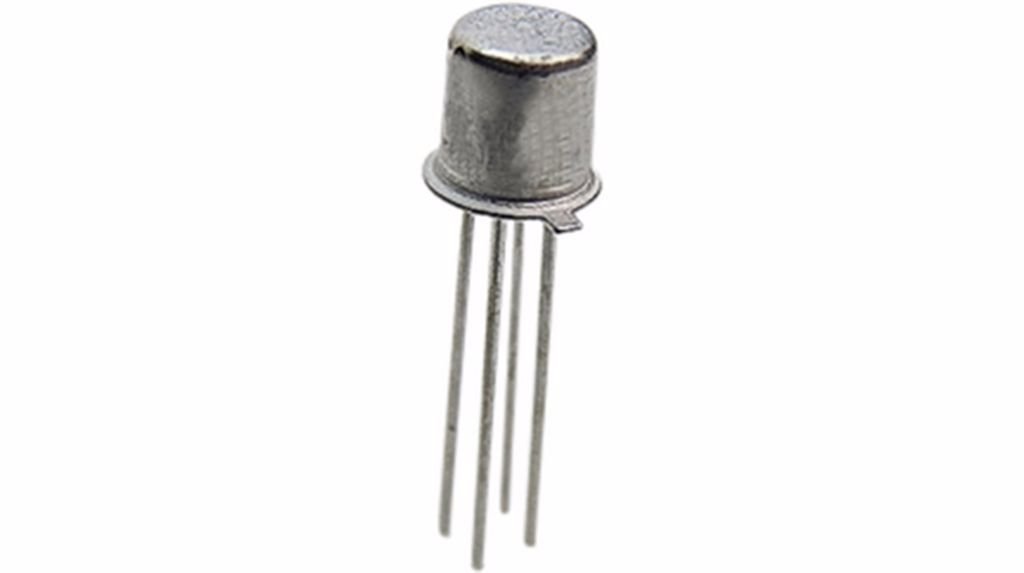

2SA341 TO-72 0.01A 20V PNP TRANSISTOR
16,75 TL
2SA341
Type Designator: 2SA341
Material of Transistor: Ge
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.063 W
Maximum Collector-Base Voltage |Vcb|: 20 V
Maximum Collector Current |Ic max|: 0.01 A
Max. Operating Junction Temperature (Tj): 75 °C
Transition Frequency (ft): 30 MHz
Collector Capacitance (Cc): 2 pF
Forward Current Transfer Ratio (hFE), MIN: 100
Package: TO72
