2SA608 TO-92 0.1A 30V 0.1W PNP TRANSISTOR
0,86 TL
2SA608
Type Designator: 2SA608
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.1 W
Maximum Collector-Base Voltage |Vcb|: 30 V
Maximum Collector-Emitter Voltage |Vce|: 15 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 40 MHz
Collector Capacitance (Cc): 18 pF
Forward Current Transfer Ratio (hFE), MIN: 100

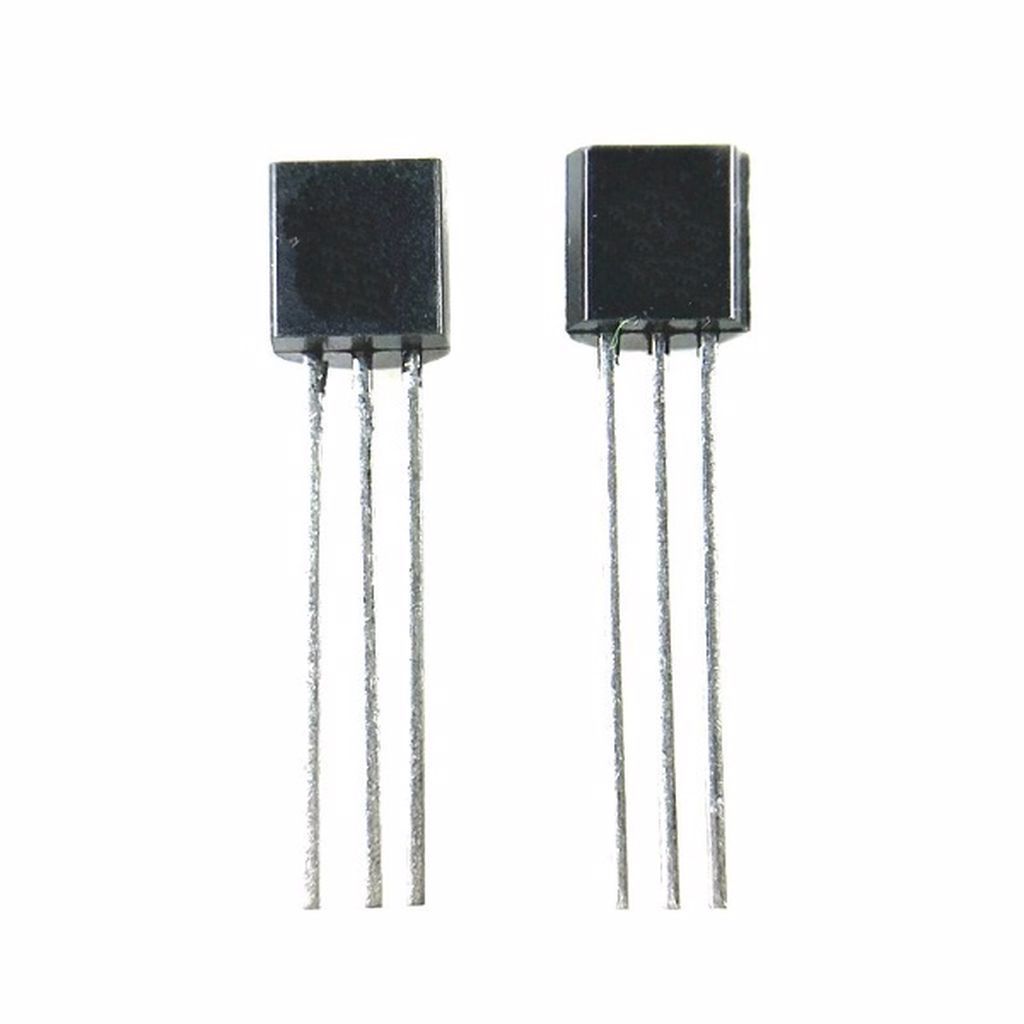

Package: TO92
