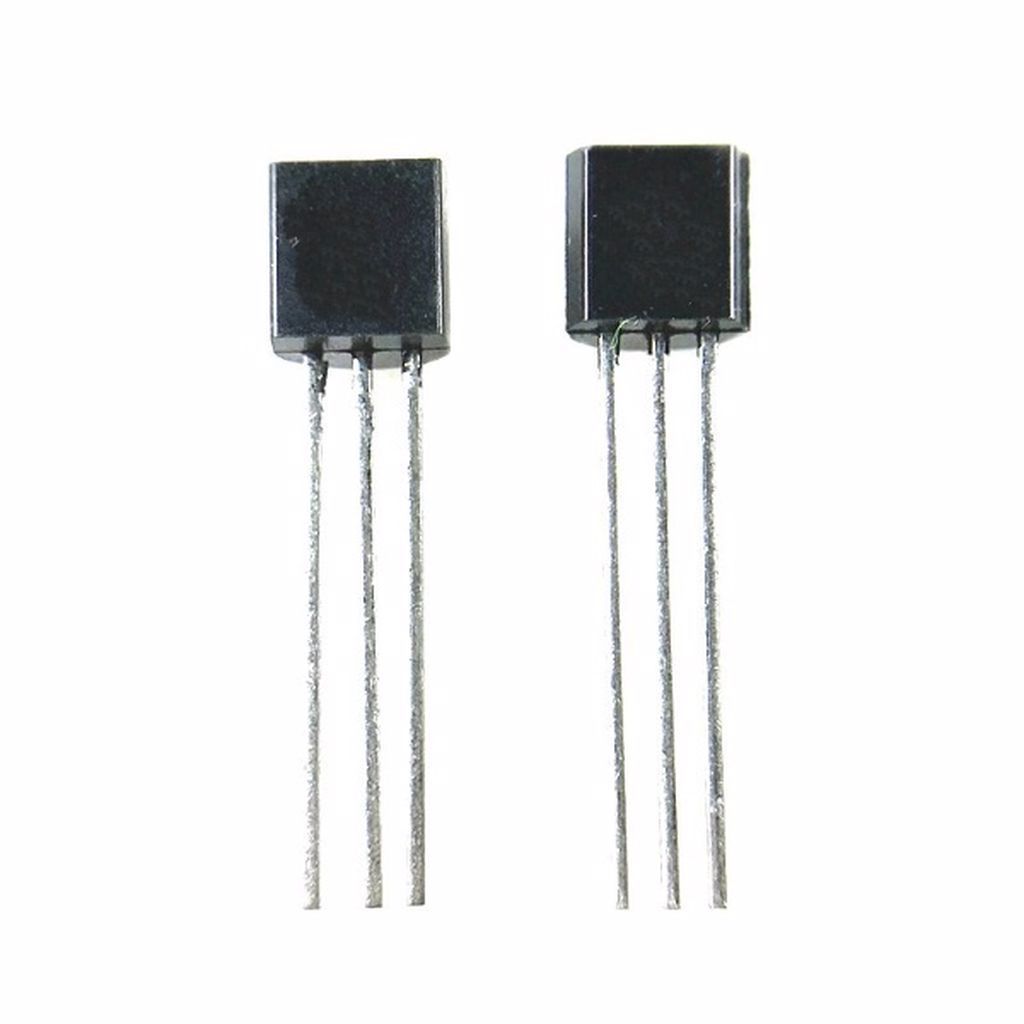

2SA673 TO-92 0.5A 35V 0.2W PNP TRANSISTOR
5,15 TL
2SA673
Type Designator: 2SA673
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.2 W
Maximum Collector-Base Voltage |Vcb|: 35 V
Maximum Collector-Emitter Voltage |Vce|: 35 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.5 A
Max. Operating Junction Temperature (Tj): 125 °C
Transition Frequency (ft): 40 MHz
Forward Current Transfer Ratio (hFE), MIN: 40
Noise Figure, dB: -
