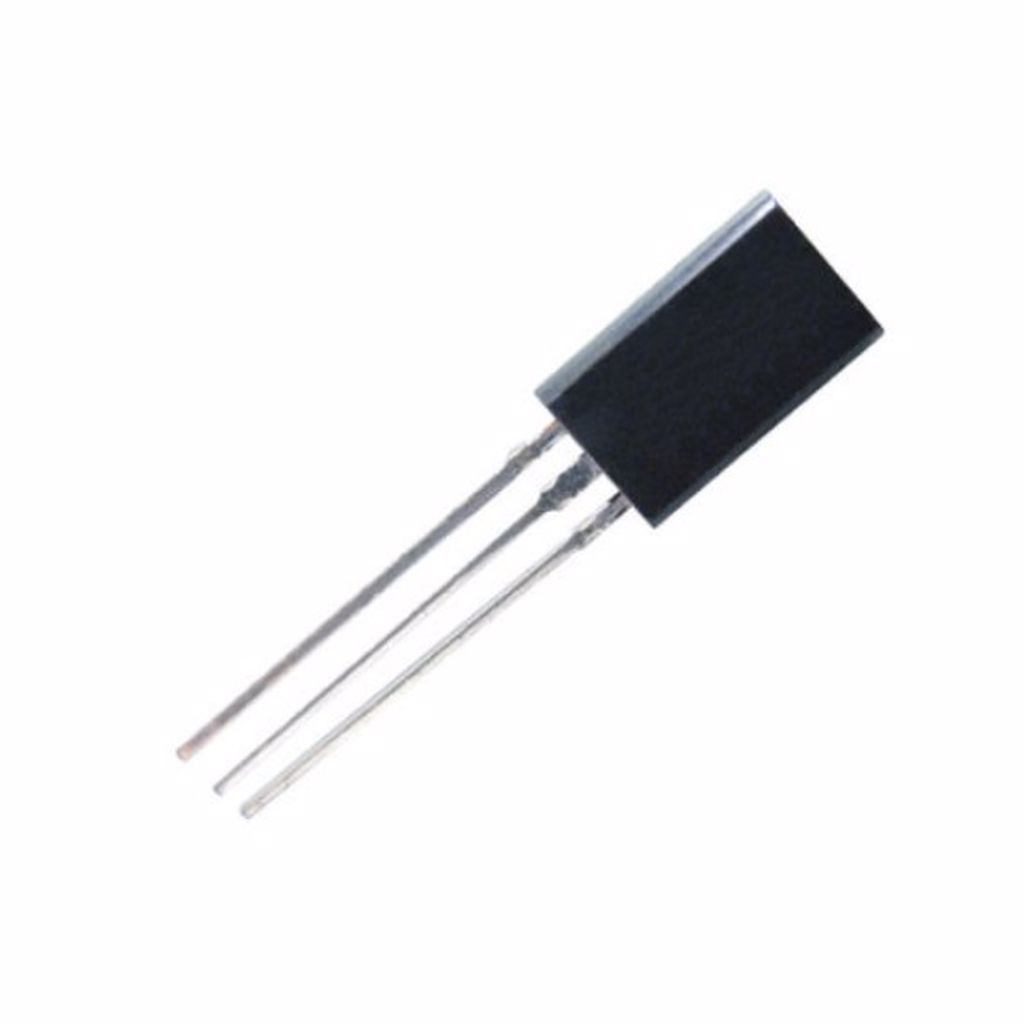

2SA683

Type Designator: 2SA683

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.75 W

Maximum Collector-Base Voltage |Vcb|: 30 V

Maximum Collector-Emitter Voltage |Vce|: 25 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 1.5 A

Max. Operating Junction Temperature (Tj): 125 °C

Transition Frequency (ft): 100 MHz

Collector Capacitance (Cc): 30 pF

Forward Current Transfer Ratio (hFE), MIN: 60

Noise Figure, dB: -

Package: TO92
