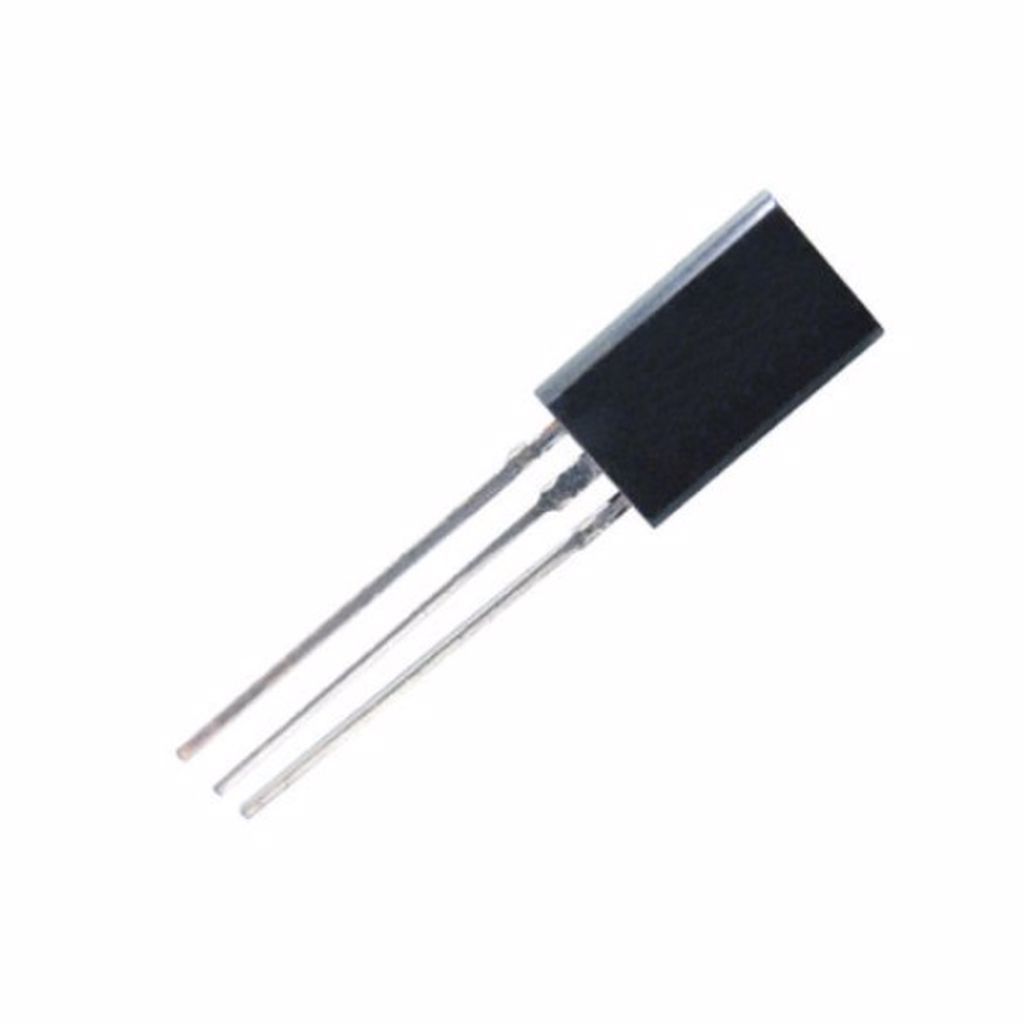

2SA684

Type Designator: 2SA684

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 1 W

Maximum Collector-Base Voltage |Vcb|: 60 V

Maximum Collector-Emitter Voltage |Vce|: 50 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 1.2 A

Max. Operating Junction Temperature (Tj): 125 °C

Transition Frequency (ft): 180 MHz

Forward Current Transfer Ratio (hFE), MIN: 50

Noise Figure, dB: -

Package: TO92
