2SA726

Type Designator: 2SA726

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.1 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Collector-Emitter Voltage |Vce|: 50 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 100 MHz

Collector Capacitance (Cc): 12 pF

Forward Current Transfer Ratio (hFE), MIN: 55

Noise Figure, dB: -

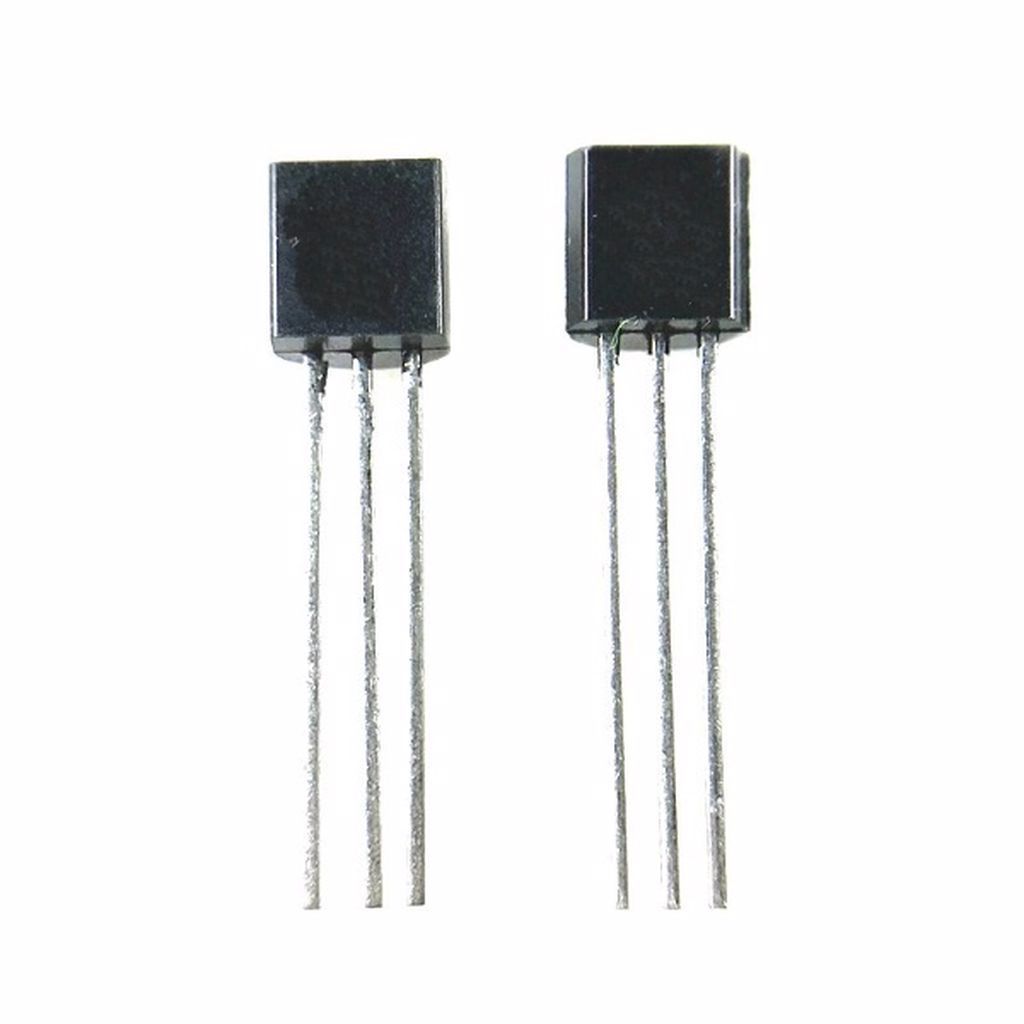

Package: TO92
