2SA764

Type Designator: 2SA764

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 40 W

Maximum Collector-Base Voltage |Vcb|: 60 V

Maximum Collector-Emitter Voltage |Vce|: 60 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 6 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 10 MHz

Forward Current Transfer Ratio (hFE), MIN: 30

Noise Figure, dB: -

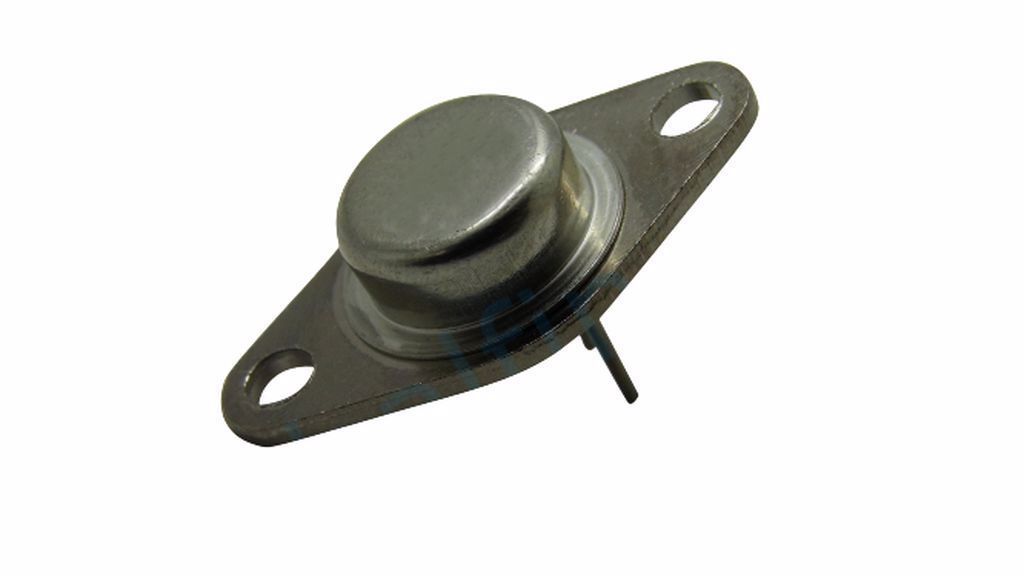

Package: TO66
