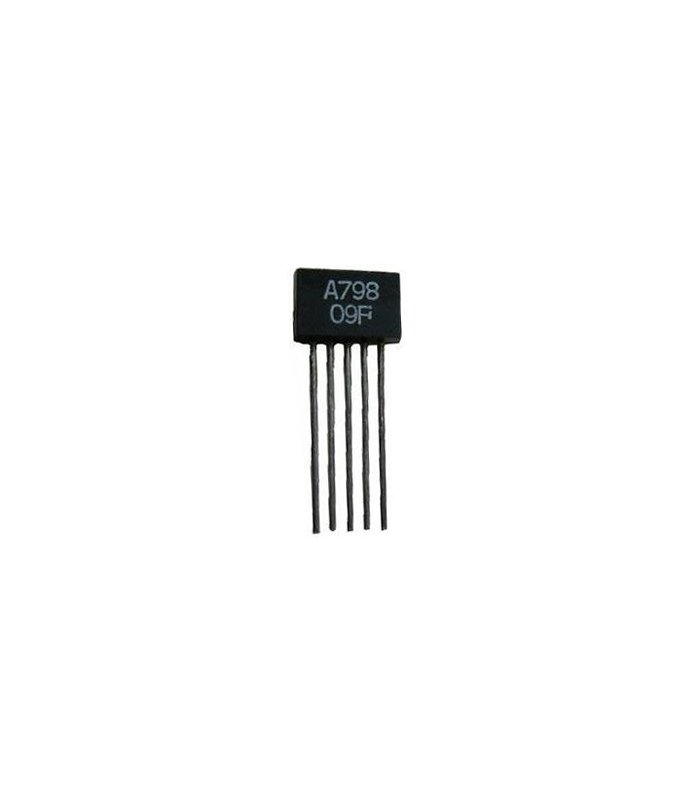

2SA798

Type Designator: 2SA798

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.4 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Collector-Emitter Voltage |Vce|: 50 V

Maximum Emitter-Base Voltage |Veb|: 10 V

Maximum Collector Current |Ic max|: 0.1 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 50 MHz

Forward Current Transfer Ratio (hFE), MIN: 250

Noise Figure, dB: -

Package: SP9
