2SA826

Type Designator: 2SA826

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.25 W

Maximum Collector-Base Voltage |Vcb|: 50 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.05 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 90 MHz

Collector Capacitance (Cc): 6 pF

Forward Current Transfer Ratio (hFE), MIN: 82

Noise Figure, dB: -

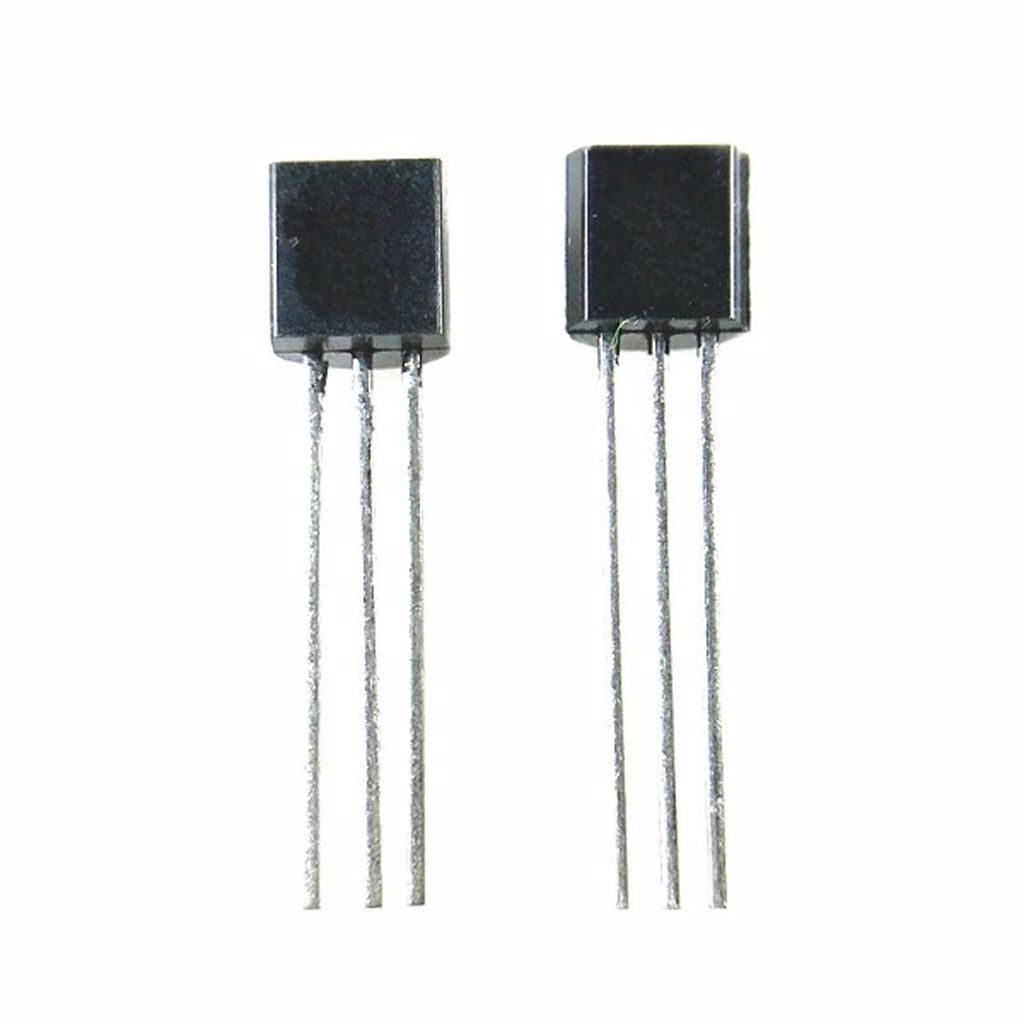

Package: TO92
