2SA854 TO-92 0.5A 40V 0.4W PNP TRANSISTOR
12,88 TL
2SA854
Type Designator: 2SA854
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.4 W
Maximum Collector-Base Voltage |Vcb|: 40 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.05 A
Max. Operating Junction Temperature (Tj): 175 °C
Transition Frequency (ft): 100 MHz
Collector Capacitance (Cc): 7.5 pF
Forward Current Transfer Ratio (hFE), MIN: 80

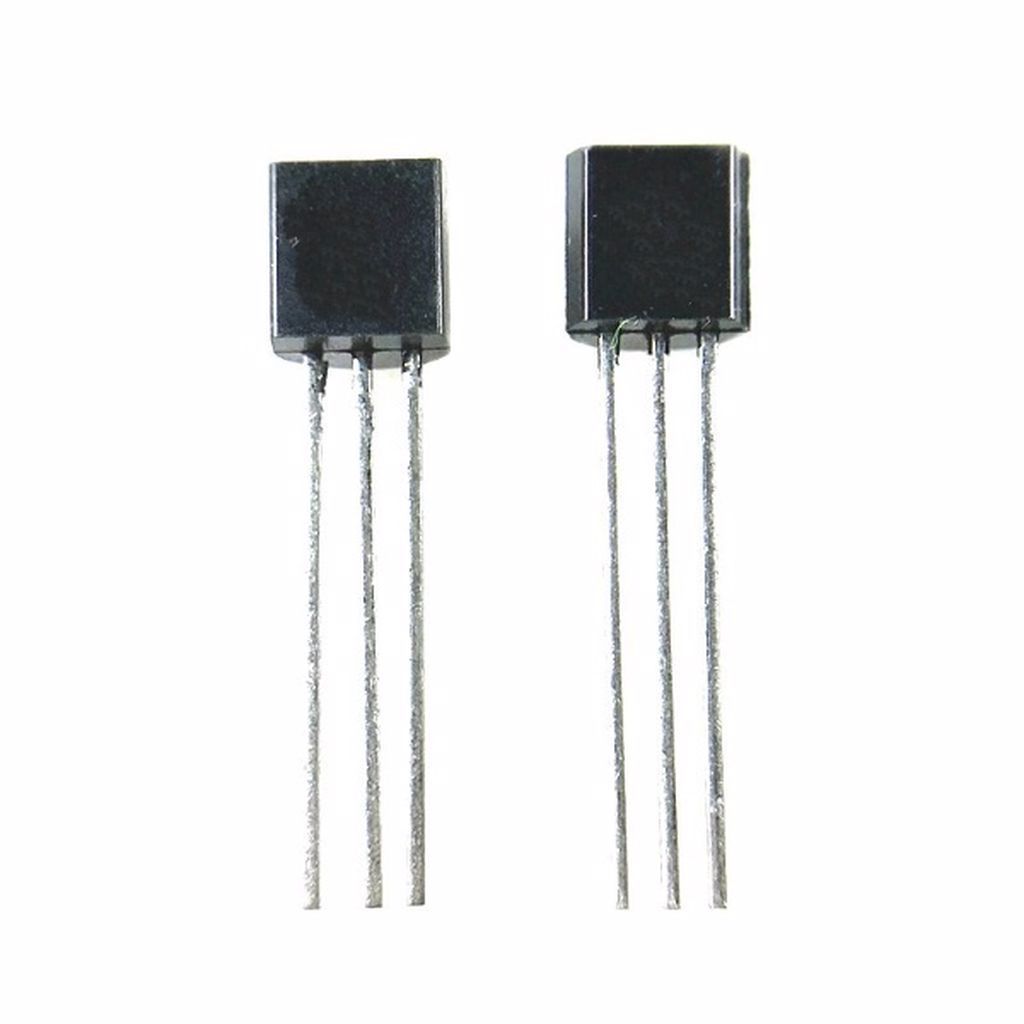

Package: TO92
