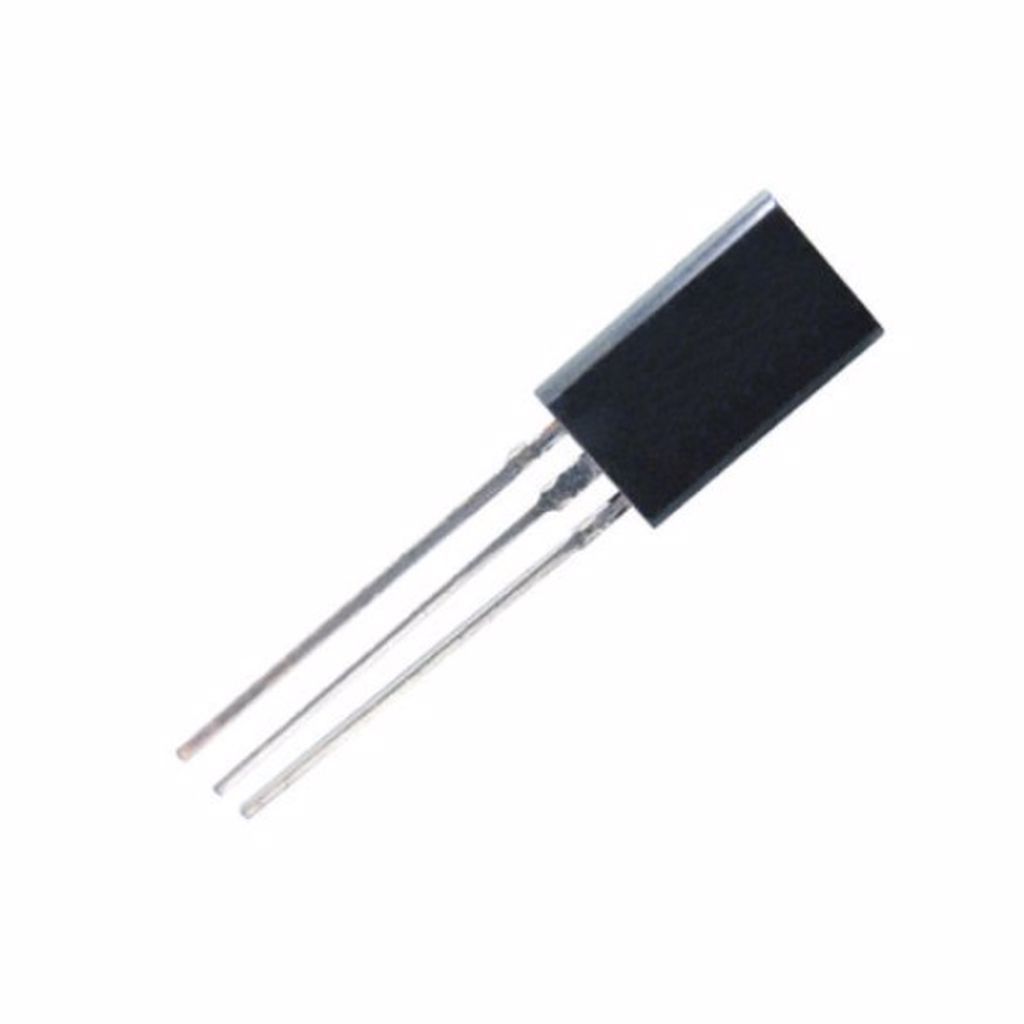

2SA949 TO-92L 0.05A 150V 0.8W PNP TRANSISTOR
6,87 TL
2SA949
Type Designator: 2SA949
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 0.8 W
Maximum Collector-Base Voltage |Vcb|: 150 V
Maximum Collector-Emitter Voltage |Vce|: 150 V
Maximum Emitter-Base Voltage |Veb|: 5 V
Maximum Collector Current |Ic max|: 0.05 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 60 MHz
Collector Capacitance (Cc): 4 pF
Forward Current Transfer Ratio (hFE), MIN: 70
Package: TO92
