2SA968

Type Designator: 2SA968

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 25 W

Maximum Collector-Base Voltage |Vcb|: 160 V

Maximum Collector-Emitter Voltage |Vce|: 160 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 1.5 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 100 MHz

Collector Capacitance (Cc): 30 pF

Forward Current Transfer Ratio (hFE), MIN: 70

Noise Figure, dB: -

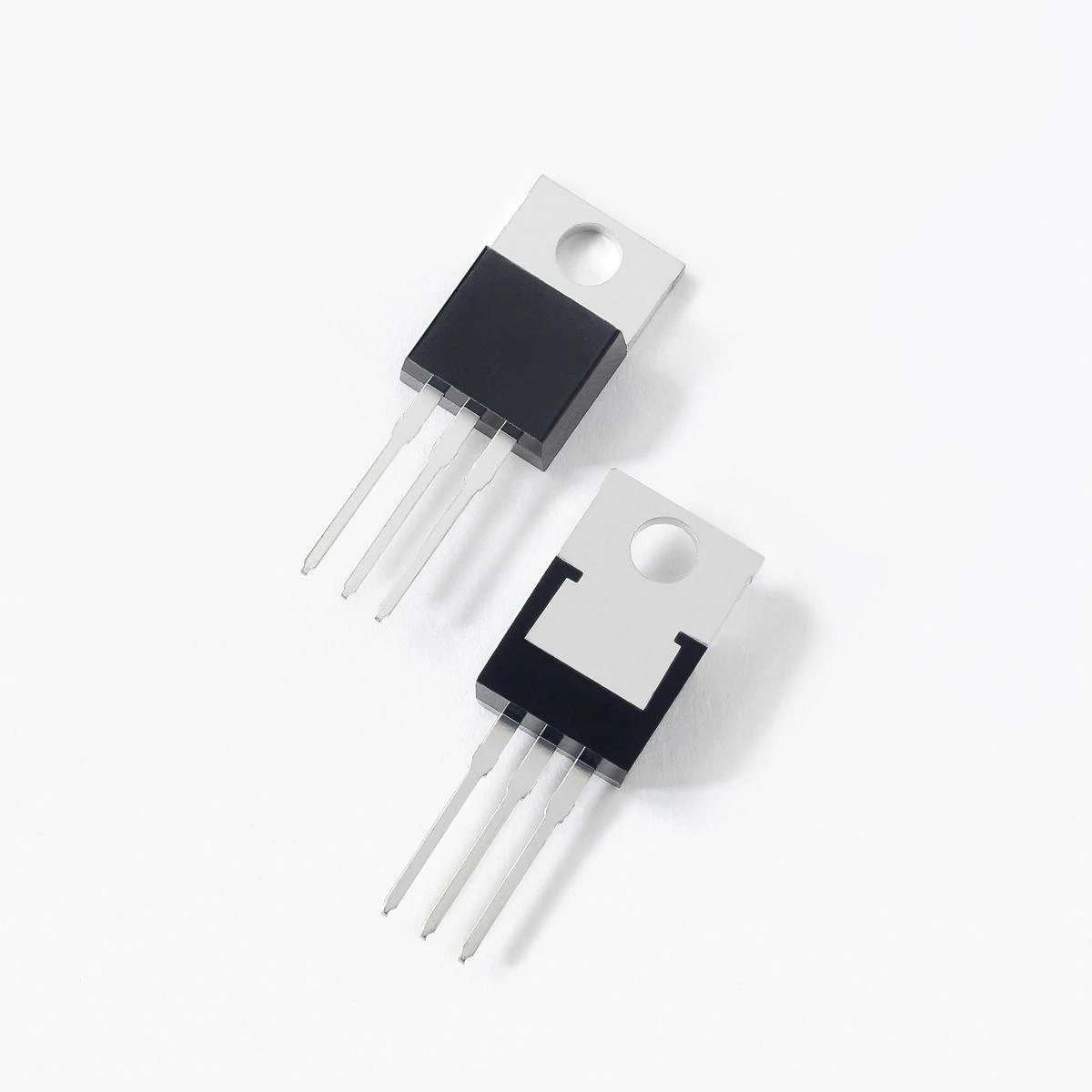

Package: TO220
