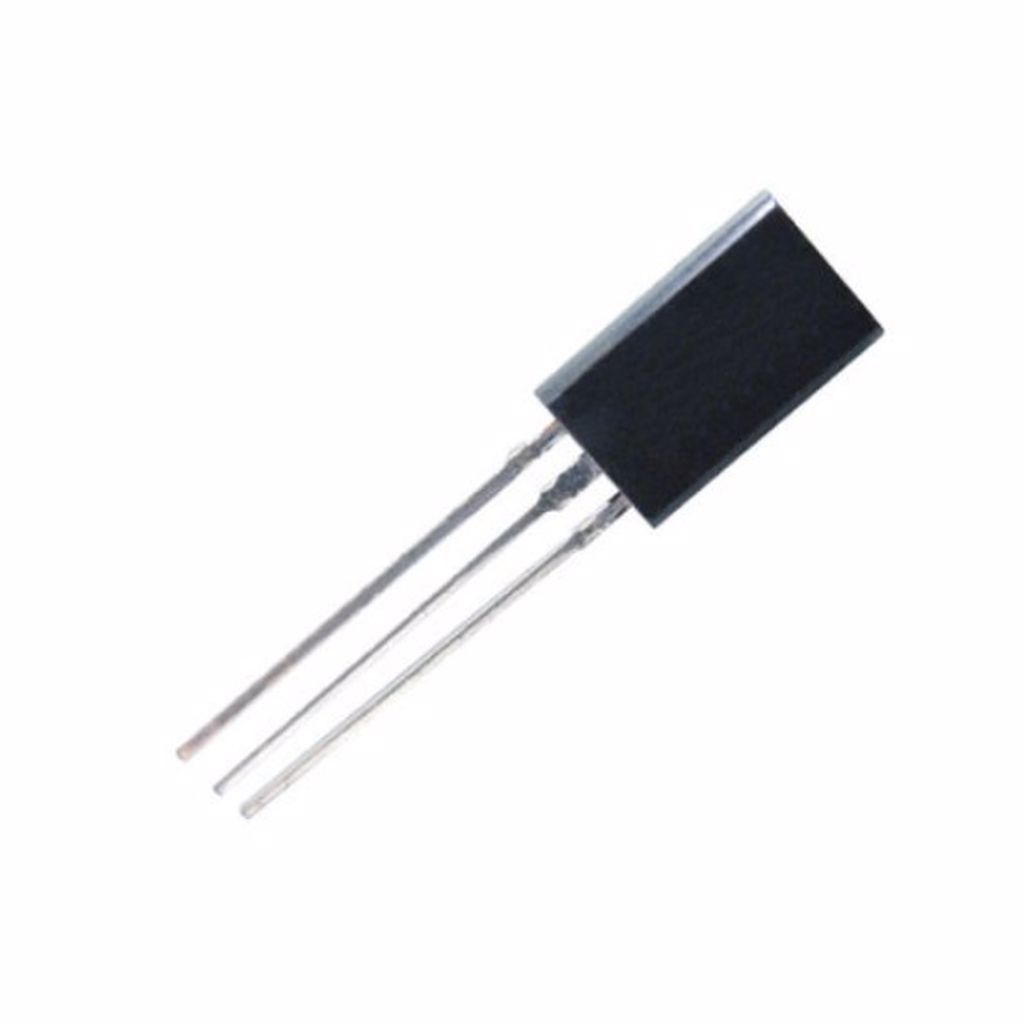

2SB562

Type Designator: 2SB562

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.9 W

Maximum Collector-Base Voltage |Vcb|: 25 V

Maximum Collector-Emitter Voltage |Vce|: 20 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 1 A

Max. Operating Junction Temperature (Tj): 125 °C

Transition Frequency (ft): 175 MHz

Collector Capacitance (Cc): 70 pF

Forward Current Transfer Ratio (hFE), MIN: 60

Noise Figure, dB: -
