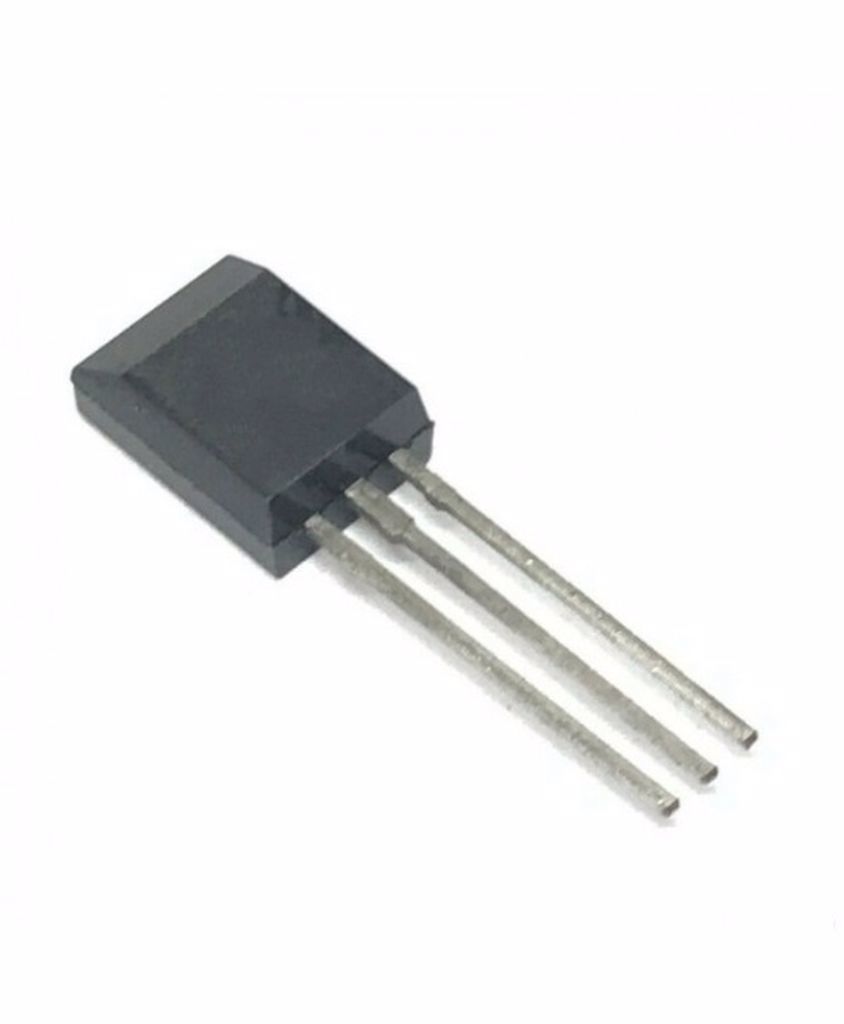

2SB605

Type Designator: 2SB605

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 0.8 W

Maximum Collector-Base Voltage |Vcb|: 60 V

Maximum Collector-Emitter Voltage |Vce|: 50 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 0.7 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 60 MHz

Forward Current Transfer Ratio (hFE), MIN: 90

Noise Figure, dB: -
