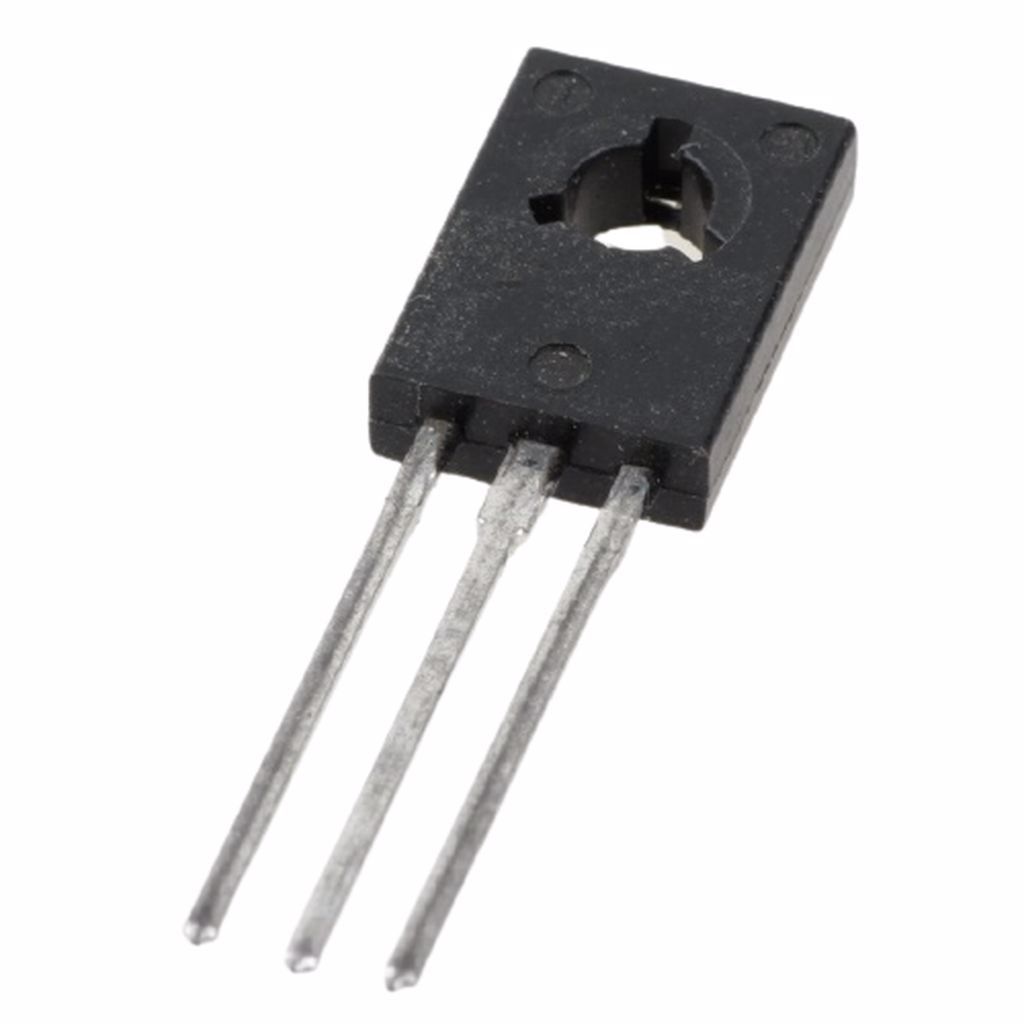

2SB772

Type Designator: 2SB772

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 10 W

Maximum Collector-Base Voltage |Vcb|: 40 V

Maximum Collector-Emitter Voltage |Vce|: 40 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 3 A

Max. Operating Junction Temperature (Tj): 150 °C

Transition Frequency (ft): 40 MHz

Collector Capacitance (Cc): 55 pF

Forward Current Transfer Ratio (hFE), MIN: 160

Noise Figure, dB: -
