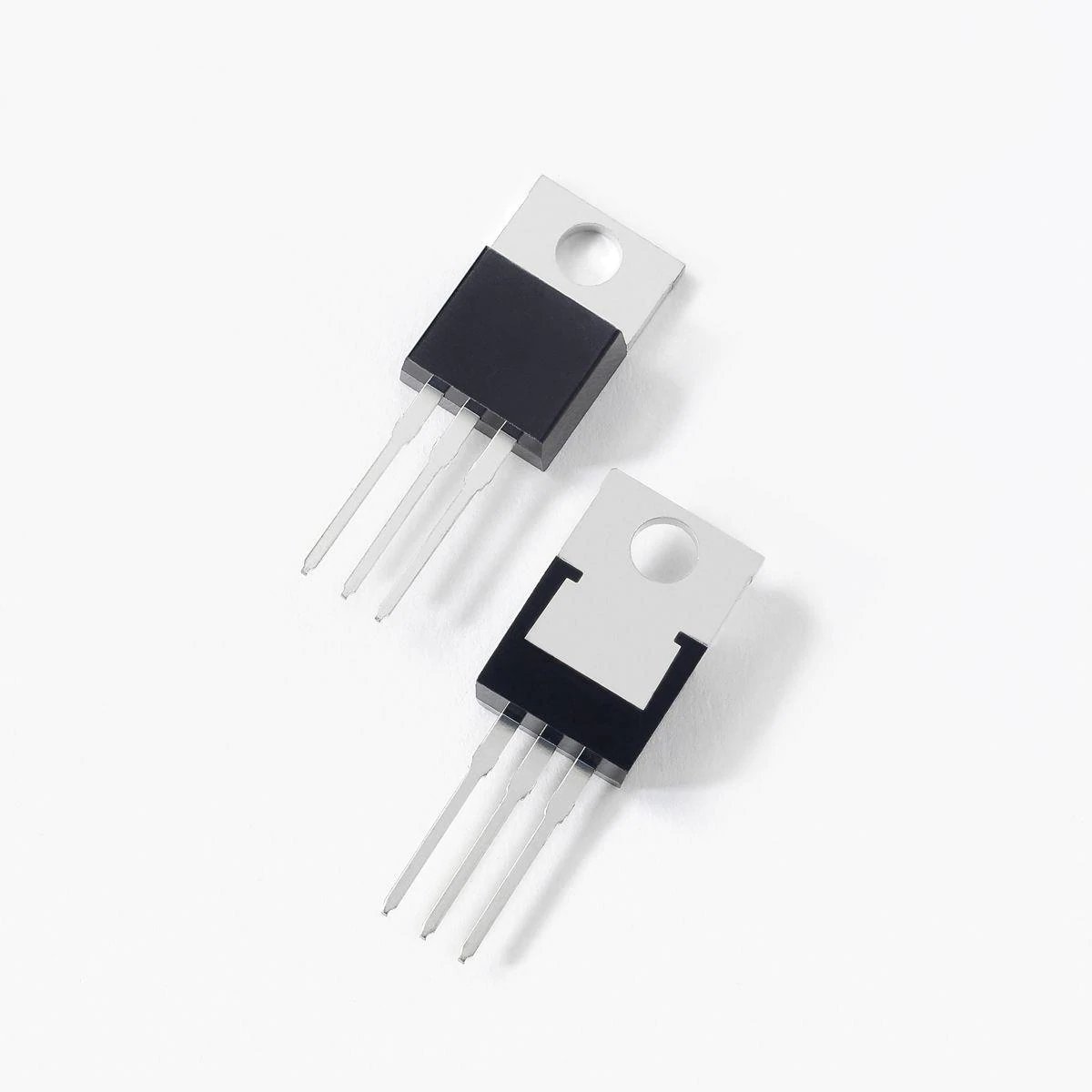

2SB826R TO-220 12A 60V 40W PNP TRANSISTOR
22,78 TL
2SB826R
Type Designator: 2SB826R
Material of Transistor: Si
Polarity: PNP
Maximum Collector Power Dissipation (Pc): 40 W
Maximum Collector-Base Voltage |Vcb|: 60 V
Maximum Collector-Emitter Voltage |Vce|: 60 V
Maximum Emitter-Base Voltage |Veb|: 6 V
Maximum Collector Current |Ic max|: 12 A
Max. Operating Junction Temperature (Tj): 150 °C
Transition Frequency (ft): 5 MHz
Forward Current Transfer Ratio (hFE), MIN: 100
Noise Figure, dB: -
