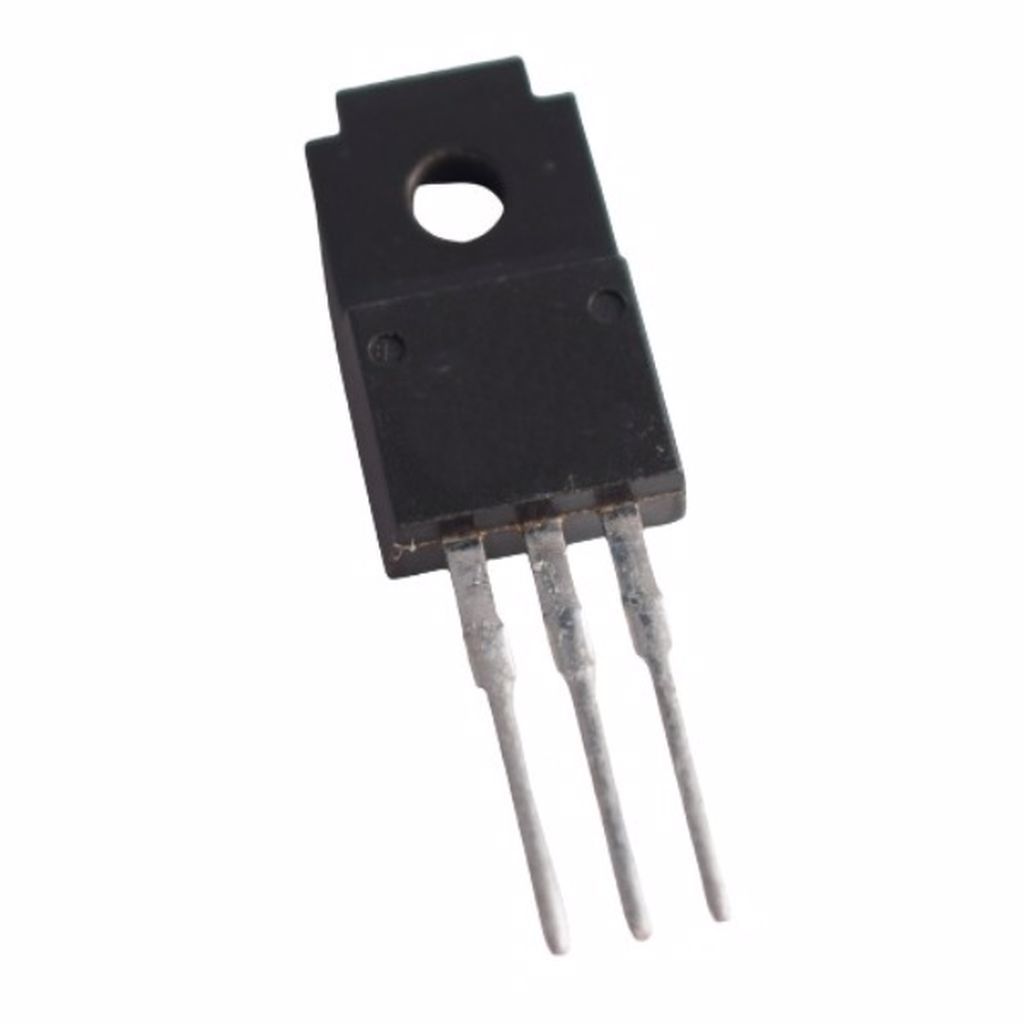

2SB946

Type Designator: 2SB946

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 40 W

Maximum Collector-Base Voltage |Vcb|: 130 V

Maximum Collector-Emitter Voltage |Vce|: 120 V

Maximum Emitter-Base Voltage |Veb|: 5 V

Maximum Collector Current |Ic max|: 7 A

Max. Operating Junction Temperature (Tj): 175 °C

Transition Frequency (ft): 15 MHz

Forward Current Transfer Ratio (hFE), MIN: 100

Noise Figure, dB: -
