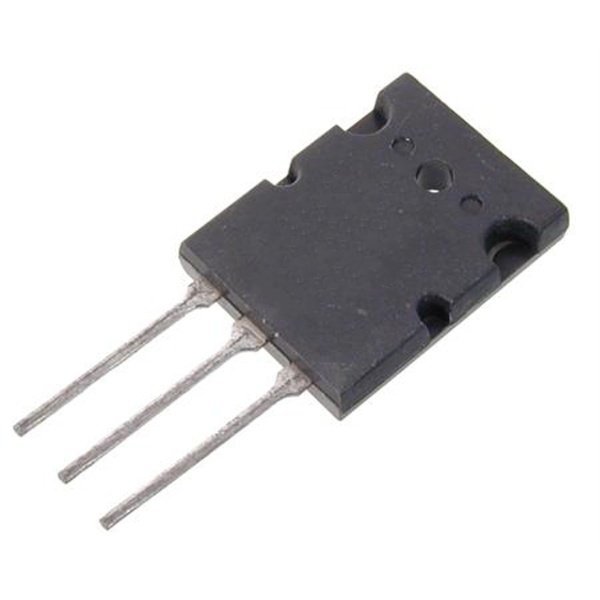

2SB966

Type Designator: 2SB966

Material of Transistor: Si

Polarity: PNP

Maximum Collector Power Dissipation (Pc): 80 W

Maximum Collector-Base Voltage |Vcb|: 120 V

Maximum Collector-Emitter Voltage |Vce|: 120 V

Maximum Emitter-Base Voltage |Veb|: 6 V

Maximum Collector Current |Ic max|: 8 A

Max. Operating Junction Temperature (Tj): 175 °C

Forward Current Transfer Ratio (hFE), MIN: 120

Noise Figure, dB: -
