2SK2661 5A 500V 75W 1.5Ω N-CH

Type Designator: 2SK2661

Marking Code: K2661

Type of Transistor: MOSFET

Type of Control Channel: N -Channel

Maximum Power Dissipation (Pd): 75 W

Maximum Drain-Source Voltage |Vds|: 500 V

Maximum Gate-Source Voltage |Vgs|: 30 V

Maximum Gate-Threshold Voltage |Vgs(th)|: 4 V

Maximum Drain Current |Id|: 5 A

Maximum Junction Temperature (Tj): 150 °C

Total Gate Charge (Qg): 17 nC

Rise Time (tr): 12 nS

Drain-Source Capacitance (Cd): 200 pF

Maximum Drain-Source On-State Resistance (Rds): 1.5 Ohm

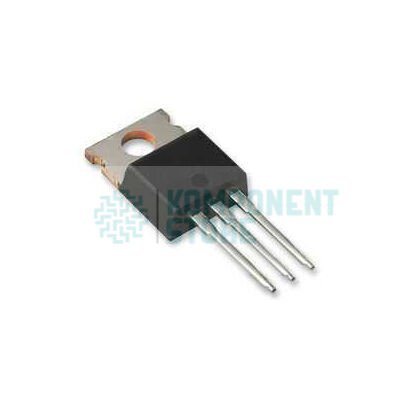

Package: TO220AB
