PDTC143ET - (W02) 0.1A 50V 0.25W NPN
9,13 TL

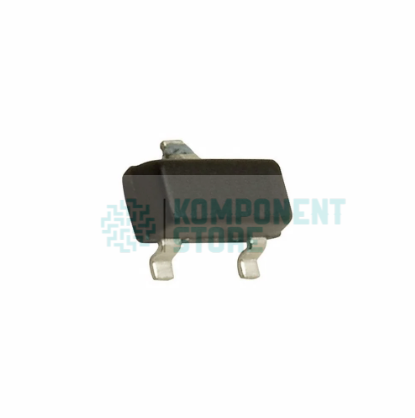

PDTC143ET SOT-23 0.1A 50V 0.25W NPN TRANSISTOR
PDTC143ET
Type Designator: PDTC143ET
SMD Transistor Code: *02_p02_t02_W02
Material of Transistor: Si
Polarity: Pre-Biased-NPN
Built in Bias Resistor R1 = 4.7 kOhm
Built in Bias Resistor R2 = 4.7 kOhm
Typical Resistor Ratio R1/R2 = 1
Maximum Collector Power Dissipation (Pc): 0.25 W
Maximum Collector-Base Voltage |Vcb|: 50 V
Maximum Collector-Emitter Voltage |Vce|: 50 V
Maximum Emitter-Base Voltage |Veb|: 10 V
Maximum Collector Current |Ic max|: 0.1 A
Max. Operating Junction Temperature (Tj): 150 °C
Collector Capacitance (Cc): 2.5 pF
Forward Current Transfer Ratio (hFE), MIN: 30
Package: SOT23
