STW70N60DM2 MOSFET

Type Designator: STW70N60DM2

Marking Code: 70N60DM2

Type of Transistor: MOSFET

Type of Control Channel: N -Channel

Maximum Power Dissipation (Pd): 446 W

Maximum Drain-Source Voltage |Vds|: 600 V

Maximum Gate-Source Voltage |Vgs|: 25 V

Maximum Gate-Threshold Voltage |Vgs(th)|: 5 V

Maximum Drain Current |Id|: 66 A

Maximum Junction Temperature (Tj): 150 °C

Total Gate Charge (Qg): 121 nC

Rise Time (tr): 67 nS

Drain-Source Capacitance (Cd): 241 pF

Maximum Drain-Source On-State Resistance (Rds): 0.042 Ohm

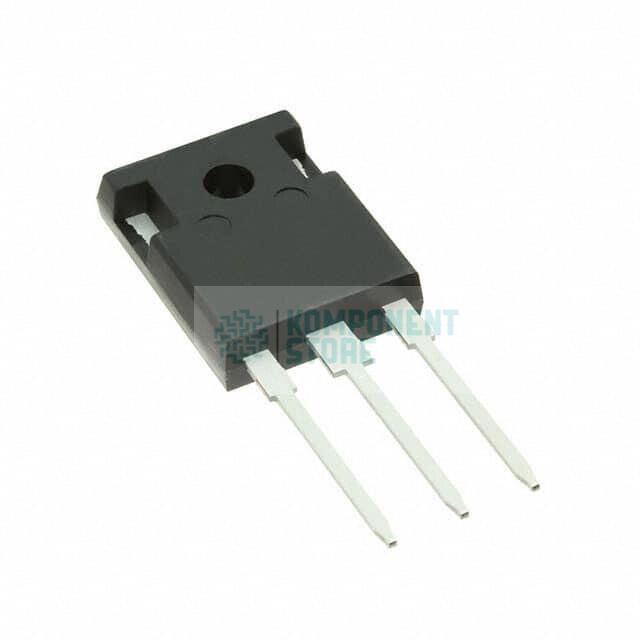

Package: TO247
